Using Hitch Manual Lowering Feature

CAUTION: Avoid personal injury or death. Do not disconnect any hitch sensors, solenoids, or connectors from the hitch control valve when engine is operating or key switch is ON. Unexpected hitch movement may occur. Stay clear of hitch area when starting engine or manually lowering hitch.

Hitch manual lowering is possible when hydraulic pressure and/or electrical power is not available.

Remove plug (A) to access the manual lowering screw (B). Turn screw counterclockwise to lower the hitch.

NOTE: The hitch cannot be raised mechanically. Both hydraulic and electrical power are required to raise the hitch.

Turn screw clockwise and install plug after hitch has been lowered.

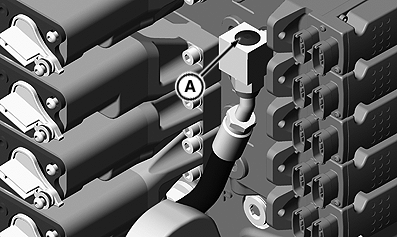

A-Plug

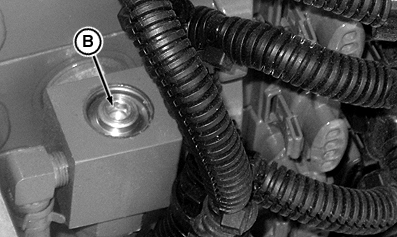

B-Manual Lowering Screw

OURX935,0000078 -19-16JUL08-1/1
