Disconnecting Hydraulic Hoses

IMPORTANT: Steam cleaning or use high pressure washer in the area around the SCV connections and electronics may damage equipment. Any pressure washer exceeding 1000 psi ( 75 bar).. should be kept a minimum of 200 mm ( 8 in.) away from connections.

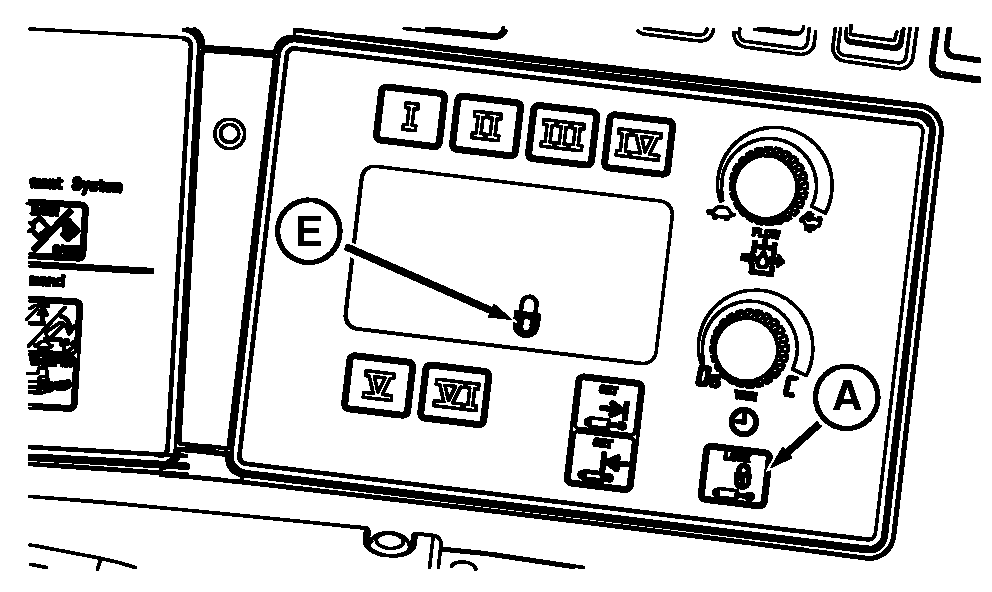

causym CAUTION: Push transport lock touch switch (A) on SCV TouchSet monitor before detaching implements to prevent implement movement and possible personal injury.

1. Lower implement to ground.

2. Push transport lock touch switch to engage transport lock.

3. Observe TouchSet Monitor to ensure padlock (E) is displayed.

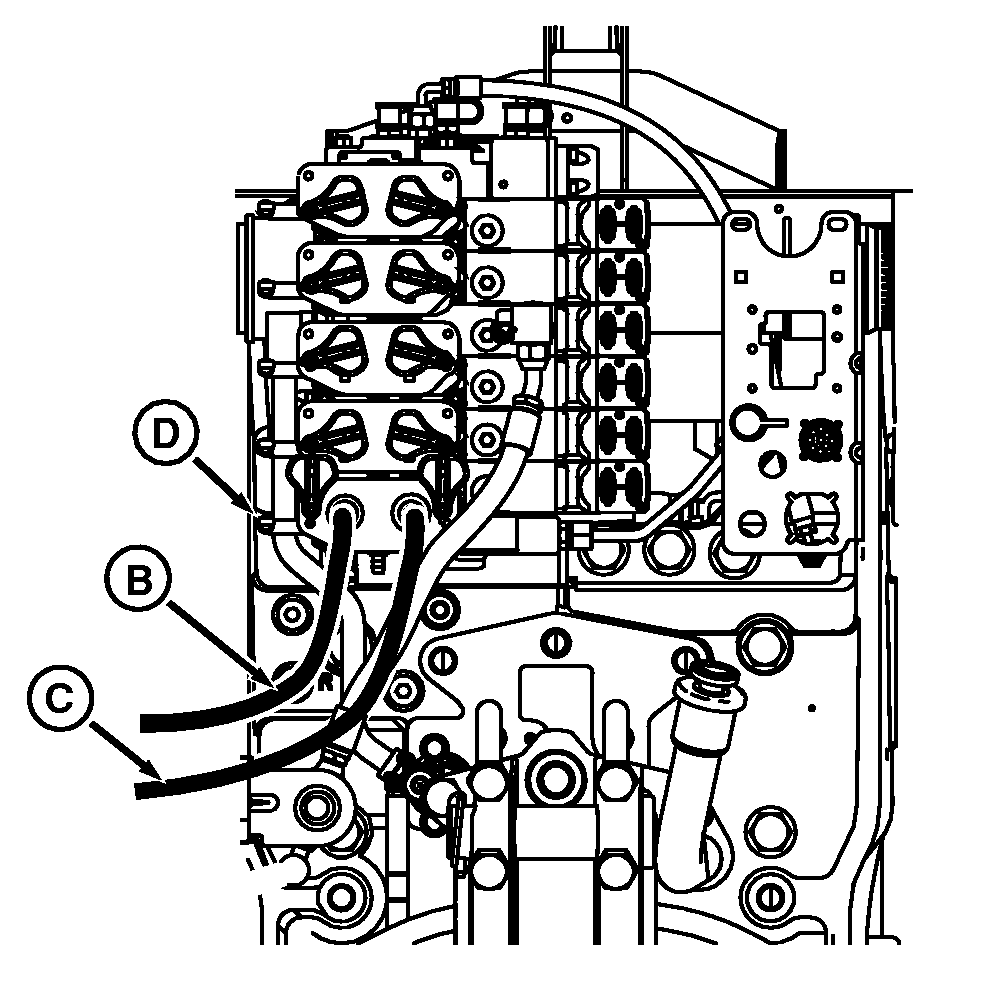

4. Push lever (D) down to release both extend hose (B) and retract hose (C).


A-Transport Lock Touch Switch
B-Extend Hose
C-Retract Hose
D-Lever
E-Padlock

RXA0098646
RXA0097039

OURX935,0000092 -19-10JUL08-1/1
