Checking Neutral Start System-IVT Transmission

1. Make sure that that everyone is clear of tractor.

2. Fully depress clutch and brake pedals.

3. Move left-hand reverser to any position except NEUTRAL or PARK position.

4. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere Dealer immediately.

For IVT tractors equipped with left-hand reverser, engine will start in NEUTRAL or PARK positions.

For IVT tractors equipped with right-hand shift controls, engine will only start in PARK.


A-Shift Lever in Neutral

RXA0082370

IVT Transmission Right-Hand Reverser in Neutral

RXA0082368

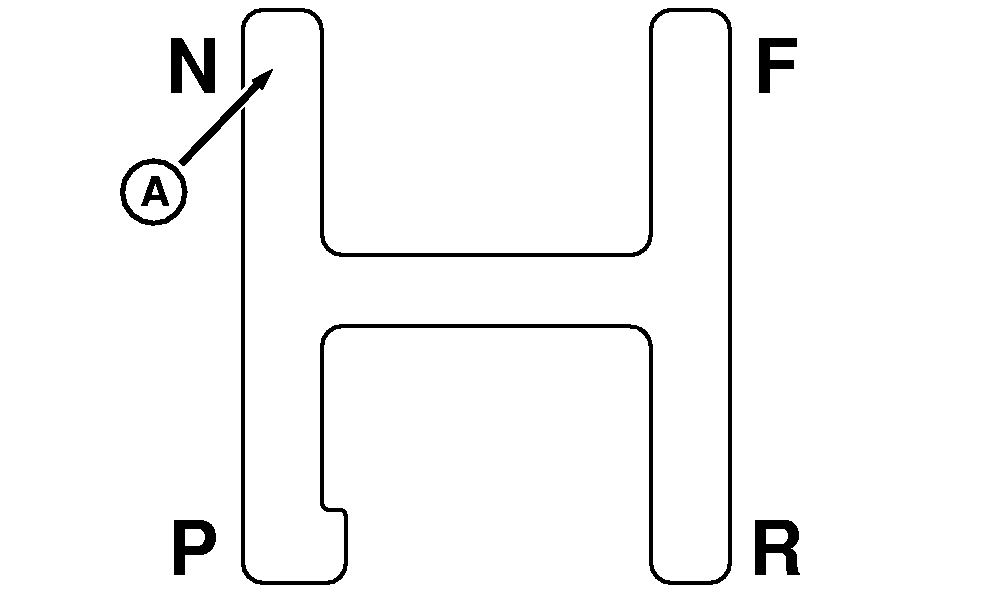

IVT Transmission Left-Hand Reverser in Neutral

OURX935,00002B5 -19-30JUL08-1/1
