Checking Wheel and Wheel Weight Bolts

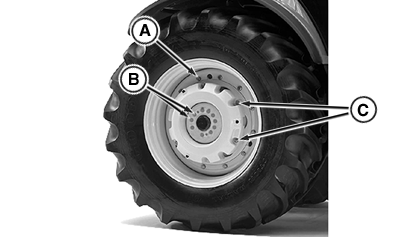

Torque rim to wheel bolts (A) and hub bolts (B) per torquing procedure listed in the Wheels, Tires and Treads section. Torque weight bolts (C) per torquing procedure listed in the Performance Ballasting section.


A-Rim to Wheel Bolts
B-Hub Bolts
C-Weight Bolts

RXA0098559

OURX935,00002B8 -19-19JUN08-1/1
