OMAR287583: 8130, 8230, 8330, 8430 and 8530 Tractors , Block File: OURX935_00002BA_19

Lubricating Front Wheel Bearings-Two Wheel Drive

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. In extremely wet conditions service daily or every 10 Hours.

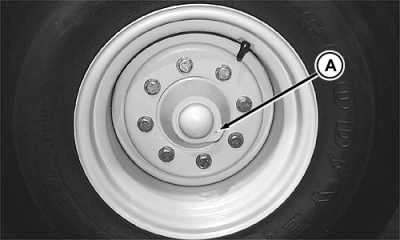

Replace plug (A) with grease fitting for tractors equipped with adjustable front axle operated in extremely wet conditions.

IMPORTANT: DO NOT use MOLY grease or grease containing clay thickeners for wheel bearing applications.

A-Plug

OURX935,00002BA -19-11JUN08-1/1
