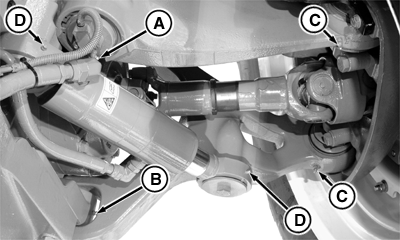

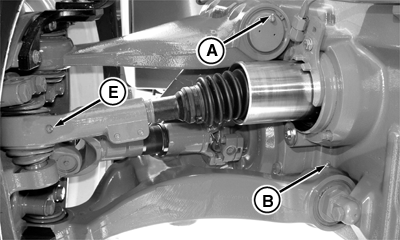

A-Upper Control Arm Fittings
B-Lower Control Arm Fittings

C-Kingpin Fittings

D-Suspension Cylinder Fittings

E-Tie Rod Fittings

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.

Upper Control Arms -Lubricate fittings (A) on each side of suspension.

Lower Control Arms -Lubricate fittings (B) on each side of suspension.

Kingpins -Lubricate fittings* (C) for each kingpin bearing.

Suspension Cylinders -Lubricate fittings (D) for both ends of each suspension cylinder.

Tie Rods -Lubricate fittings* (E) for each tie rod.

* Daily or 10 Hours in extremely wet conditions or where Auto Trac is used

OURX935,00002BD -19-13AUG08-1/1
