Lubricating Independent Link Suspension Axle U-Joints

RXA0085961

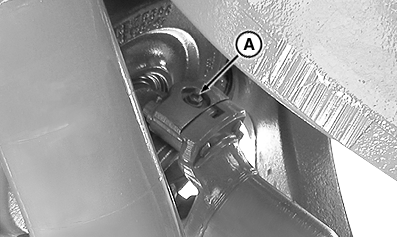

Inboard U-joint
RXA0085962

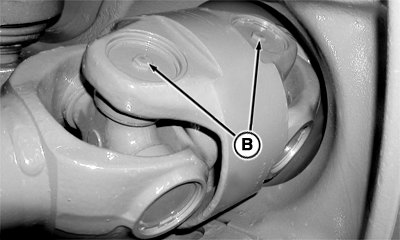

Outboard U-joint


A-Grease Fitting

B-Plug



Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. Daily or 10 Hours in extremely wet conditions or where Auto Trac is used*

Apply grease to both inboard U-joints, using fitting* (A).

Drilled passages in the cross allow grease to reach all four bearings from a single grease fitting.

For normal operations, outboard U-joints are sealed and not equipped with grease fittings. For extremely wet conditions:

1. Replace plugs (B) with M10 thread 90° grease fittings, part number 58M5580.
2. Lubricate U-joints daily or every 10 hours.
3. Replace grease fitting with plug and tighten to torque specification.

Item Measurement Specification

Plug

Torque 0.904 N·m (8 lb-in)
