Lubricating Front Hitch (If Equipped)

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section to lubricate front hitch fittings (A). Daily or 10 Hours in extremely wet conditions.

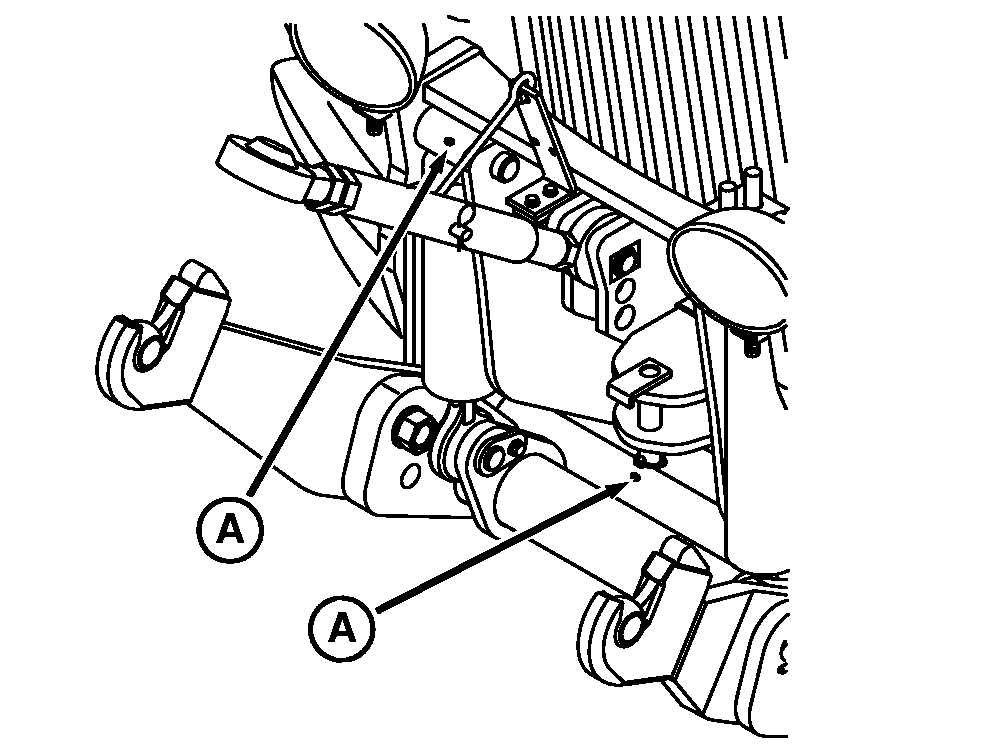

A-Front Hitch Fittings

RXA0085964

OURX935,00002C2 -19-19JUN08-1/1
