Cleaning, Inspecting, Replacing Primary Engine Air Filter |
|
|
|

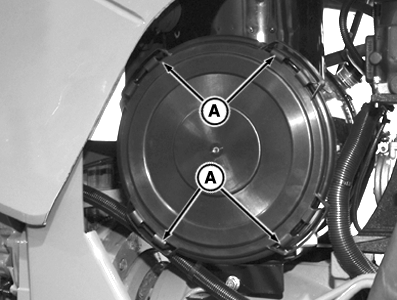

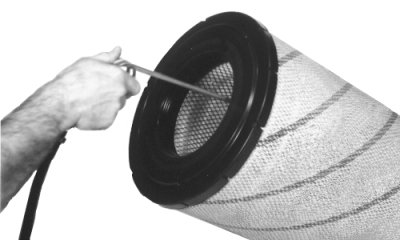

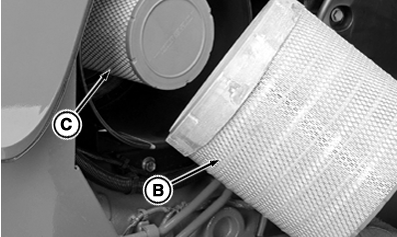

NOTE: Service primary air filter if service alert light is ON. Replace filters at least once a year or after six cleanings or if air filter service alert remains ON after cleaning. 1. Unfasten plastic clips (A), and remove filter cover. Interval can vary according to operating conditions. 2. Turn and pull to remove primary filter (B). 3. Clean filter using compressed air. Hold nozzle next to inner surface and move up and down pleats. 4. Hold a bright light inside filter and check carefully for damage. Discard filter if screen is damaged or filter shows the slightest rupture or hole. IMPORTANT: Do not attempt to clean secondary filter (C). Replace secondary filter annually or every second primary filter change. Install new secondary filter immediately to prevent dust from entering air intake system. 5. make sure that gasket is in good condition. 6. Replace filter elements and install cover. |
|
OURX935,00002D8 -19-05AUG08-1/1 |
