Replacing Transmission/Hydraulic Filter

IMPORTANT: Make sure old packings are removed before installing new filters.

Remove both filters (A).

Lubricate the new filter packing with hydraulic oil only.

Install and hand tighten both new filter elements.

Check oil level and add as required.

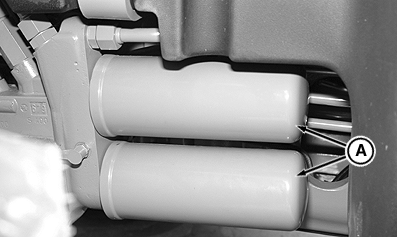

A-Transmission/Hydraulic Filters

OURX935,00002DC -19-19JUN08-1/1
