Changing MFWD Or Independent Link Suspension Wheel Hub Oil

1. Put the tractor on level surface.

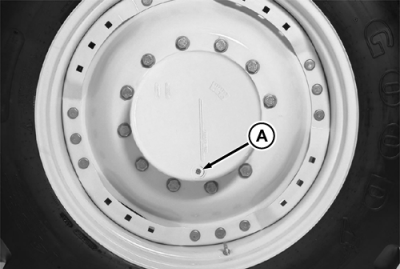

2. Rotate wheel until drain/fill hole (A) is at bottom of hub. Remove plug and drain oil.

3. Rotate wheel with drain/fill plug positioned horizontally after oil has drained.

4. Add John Deere GL-5 Gear Lubricant through drain-fill hole until oil is even with bottom of hole. Replace plug.

Wheel Hub Capacity (Each)

Standard MFWD Axle ... 3.4 L (3.6 qt)
MFWD Axle with Independent Link Suspension ... 4.0 L (4.2 qt)


RW26336

OURX935,00002DF -19-19JUN08-1/1
