Replacing SCV Stack Filter

1. Remove four cap screws (A).

2. Remove cover (B).

NOTE: Filter kit comes with filter (C), O-ring (D) and spring (E). Install new filter, open end first, into front SCV filter housing.

3. Remove old SCV filter, O-ring and spring replace with new O-ring, spring and filter.

4. Replace cover, install cap screws and tighten alternately and evenly to torque specification.

Specification

Filter Cover Cap Screws -Torque 6 N·m (53 lb-in.)

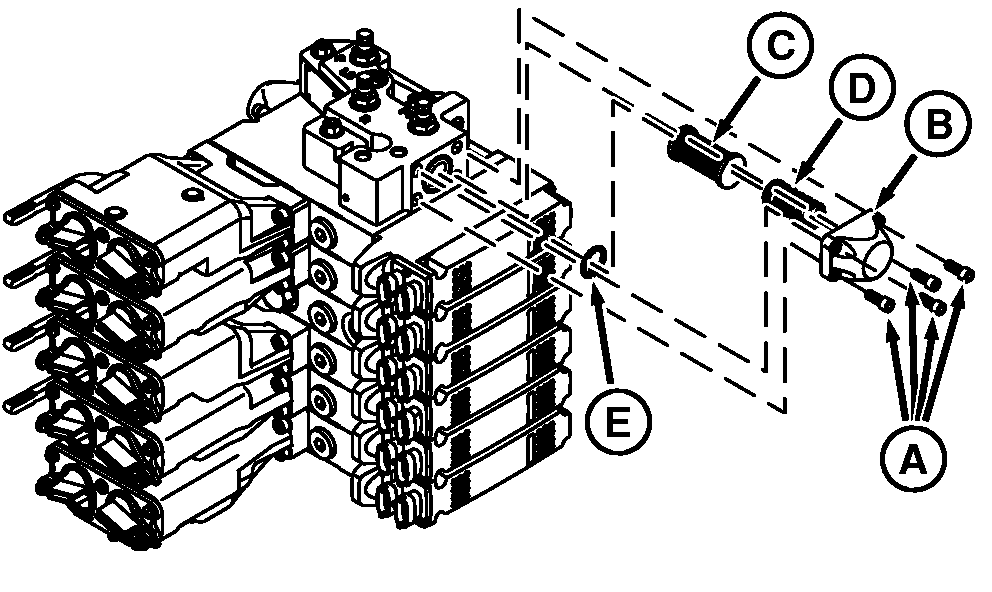

RXA0097300


A-Cap Screws
B-Cover
C-Filter
D-O-Ring
E-Spring

OURX935,0000301 -19-19JUN08-1/1
