Replacing Front Hitch SCV Filter-If Equipped

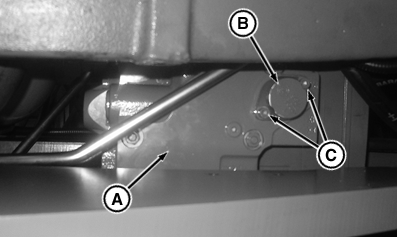

1. Remove two cap screws (C).

2. Remove cover (B).

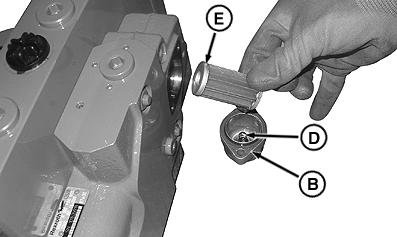

NOTE: Filter kit comes with filter (E), O-ring (F) and spring (D). Install new filter, open end first, into front SCV filter housing.

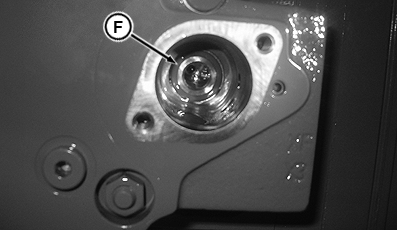

3. Remove old filter, O-ring and spring, then replace with new O-ring, spring and filter.

4. Replace cover, install cap screws and tighten alternately and evenly to torque specification.

Specification

Filter Cover Cap Screws -Torque 6 N·m (53 lb-in.)


A-SCV
B-Cover
C-Cap Screws
D-Spring
E-Filter
F-O-Ring

RXA0097145
RXA0097147
RXA0097186

OURX935,0000303 -19-19JUN08-1/1
