Replacing Instrument and Display Illumination Light Bulb

1. Remove screws (A) and light assembly.

2. Rotate retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Pull out light bulb.

4. Install new bulb in reverse order of removal.

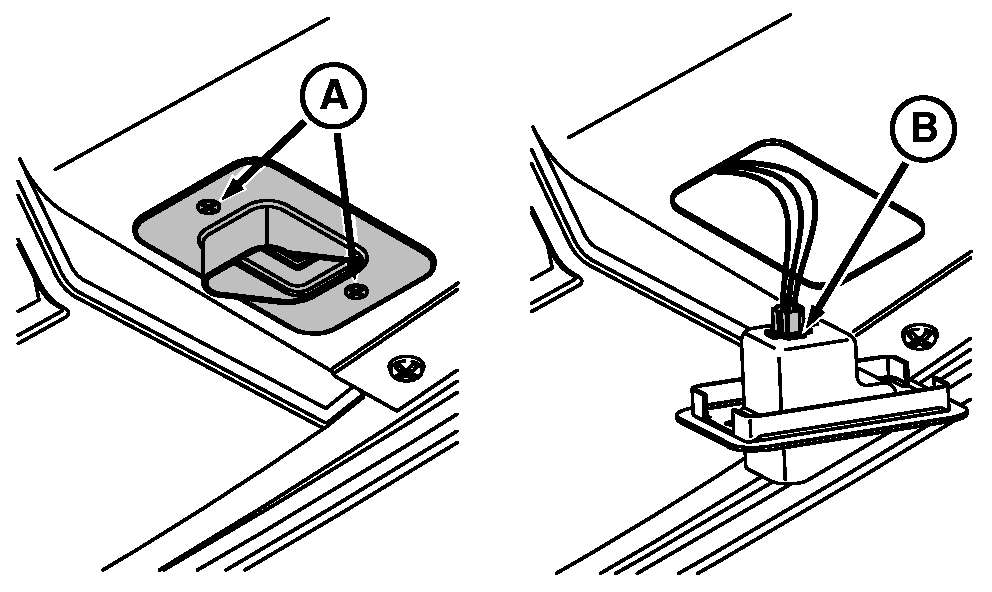

A-Screws
B-Light Bulb Retainer

RXA0098887

Remove Screws And Rotate Retainer

OURX935,0000321 -19-14AUG08-1/1
