Replacing Extremity Warning Light Bulb (if Equipped)
|
|
|
1.

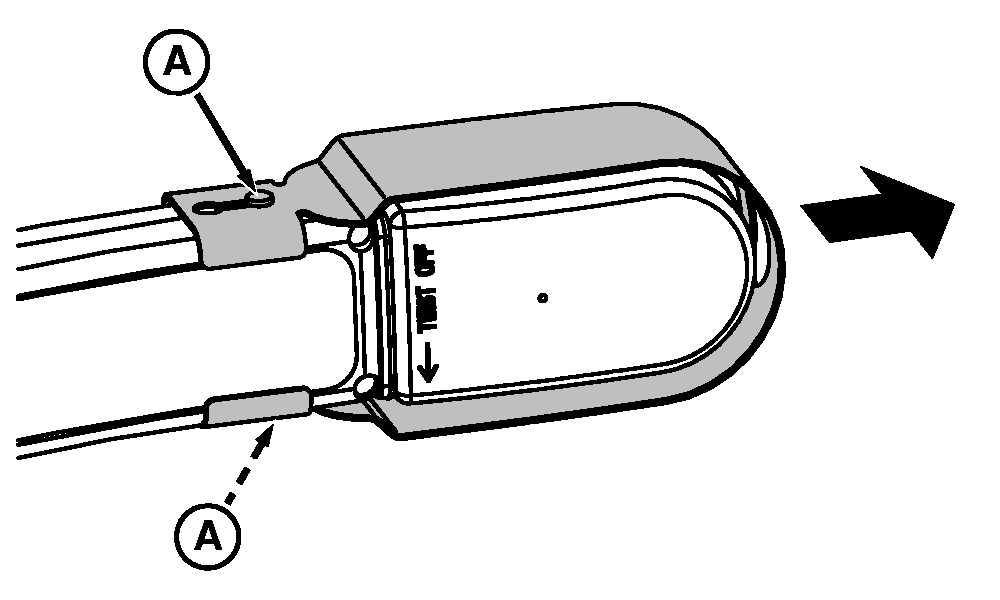

Loosen screws (A).

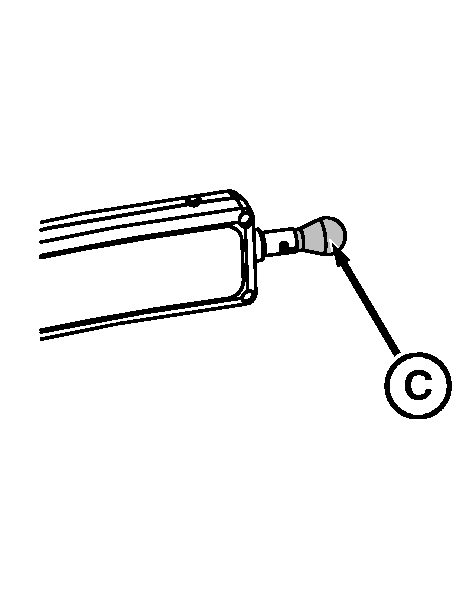

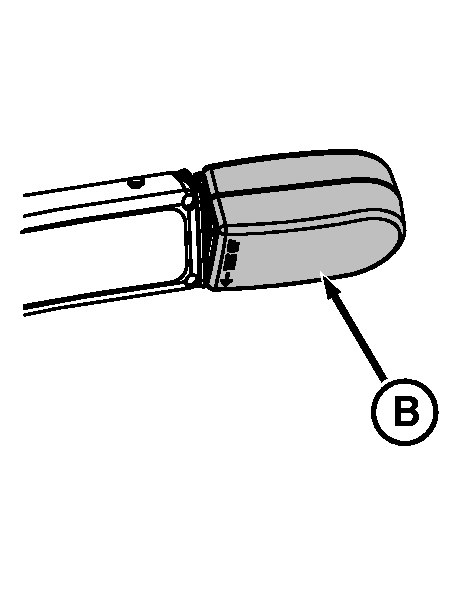

2. Slide shield away from lens cover to remove. 3. Turn lens cover (B) counterclockwise to remove light bulb (C). |
4. Install new bulb in reverse order of removal |
