NOTE: Early model tractors are equipped with a red tail light and a single bulb. Late model tractors are equipped with brake lights, a amber/red tail light cover and have two light bulbs in the fixture instead of the one found on early model tractors.

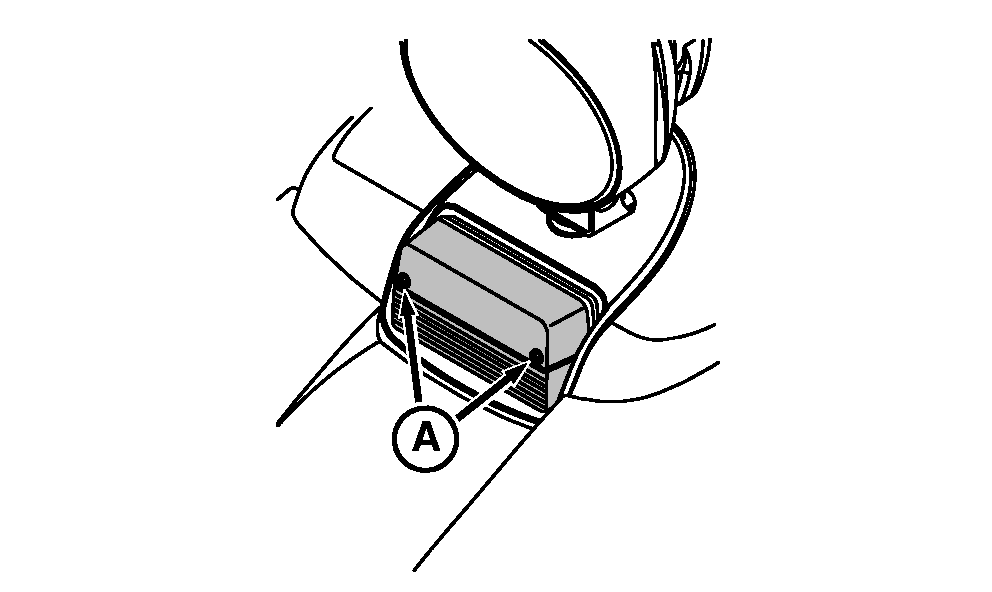

1. Remove screws (A) and light assembly.

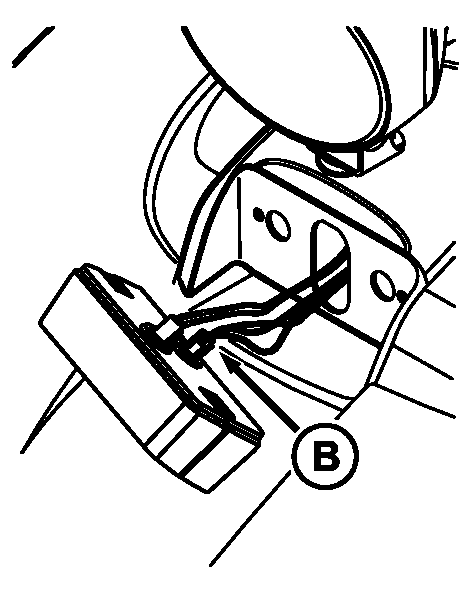

2. Rotate retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Pinch and pull light bulb out.

4. Install new bulb in reverse order of removal.

OURX935,000035B -19-16JUN08-1/1
