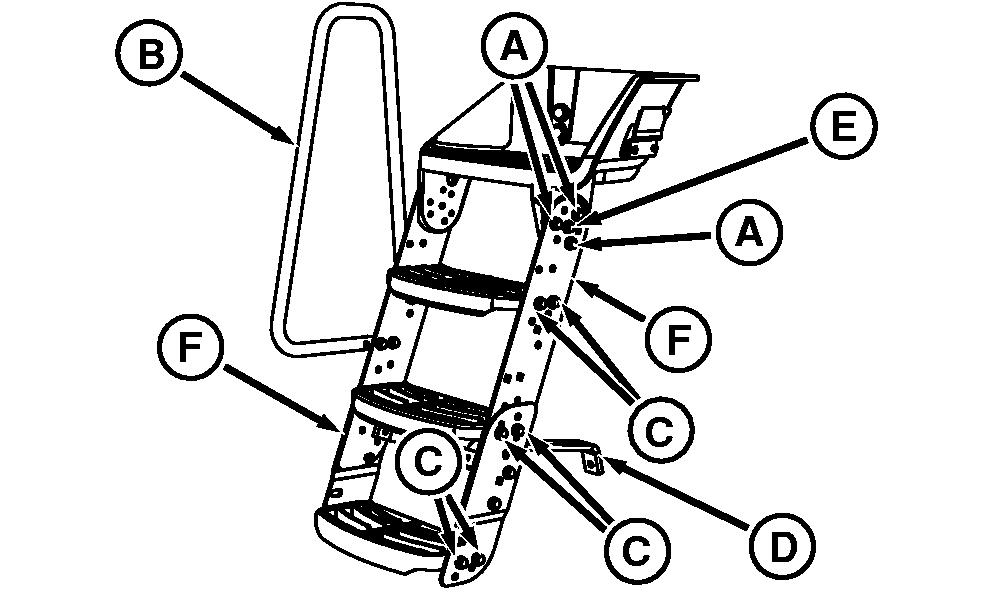

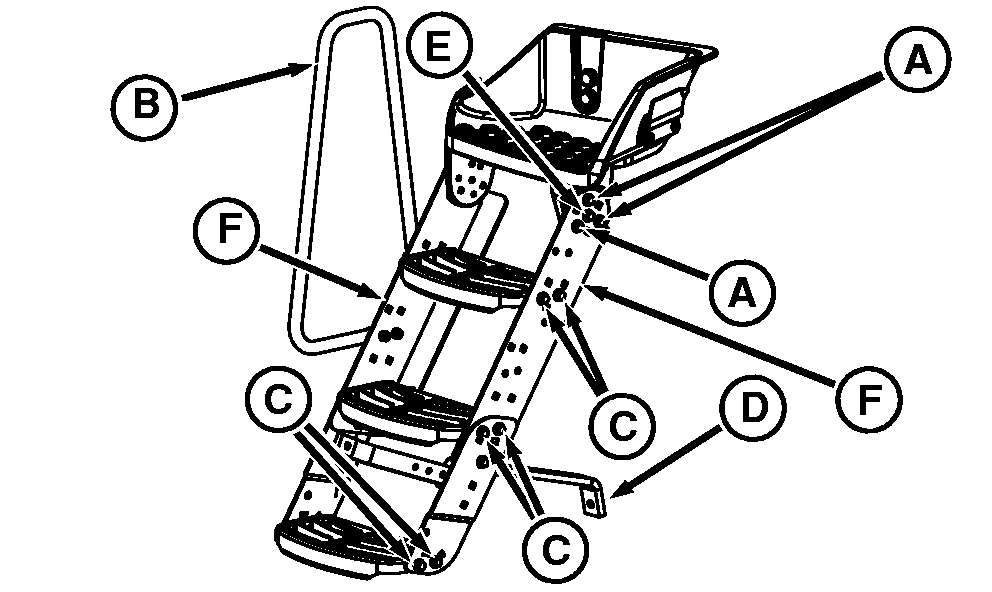

A-Step Angle Bolts
B-Handrail

C-Step Positioning Bolts
D-Strap

E-Center Bolt

F-Side Panels

NOTE: Step assembly can be adjusted to either wide or narrow position. For wide positioned steps, use round holes in side panels (F) for individual step and handrail positioning. For narrow steps, use square holes in side panels.

Do not remove center bolt (E). Step assembly can pivot to new setting while attached with center bolt which makes it easier to align bolt holes.

Change step assembly angle by removing bolts (A). Using center bolt, pivot steps to new setting and install bolts.

Use step positioning bolt (C) to adjust individual steps to match step assembly angle.

Handrail (B) must be positioned in conjunction with the steps.

Strap (D) is turned end for end when converting from one step setting to the other.

After correctly positioning steps, handrail and strap, tighten cap screws to torque.
