Front Tire, Fender and Steering Stop Settings Table Explanation

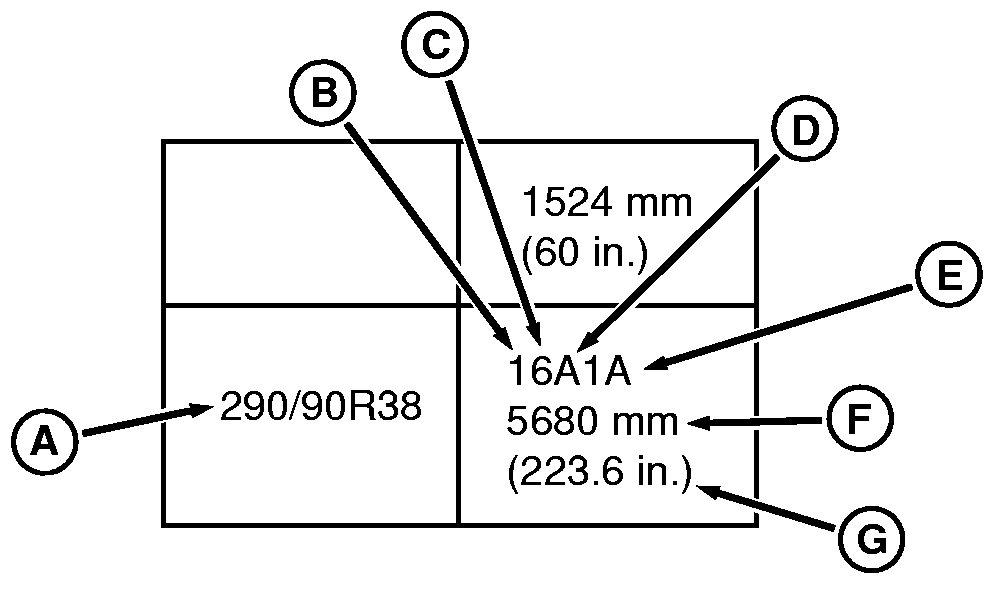

NOTE: This is an explanation of the tables in the next several pages.

The first row across the top of the page lists tread spacing in millimeters and inches.

Column one lists the tire size (A).

The first number (B) in column two identifies either an eight or sixteen position rim is used. The first letter (C) indicates which example to follow from either Eight Position Wheel Settings or Sixteen Position Wheel Settings. The next number (D) is the correct steering stop position. The last letter (E) is the fender setting, which is taken from either 1300 MFWD Axle Fender Settings or Independent Link Suspension Fender Settings. If a small "w" is attached after the letter used for the fender setting, it would indicate the setting listed is for wide fenders. The last two entries (F) and (G) indicates turning radius in millimeters and inches respectively.

* Tool Box must be removed from the side of the transmission.

A-Tire Size
B-Eight or Sixteen Position Rim
C-Tread Setting
D-Steering Stop
E-Fender Setting
F-Turning Radius in Millimeters
G-Turning Radius in Inches

OURX935,000043F -19-04AUG08-1/1
