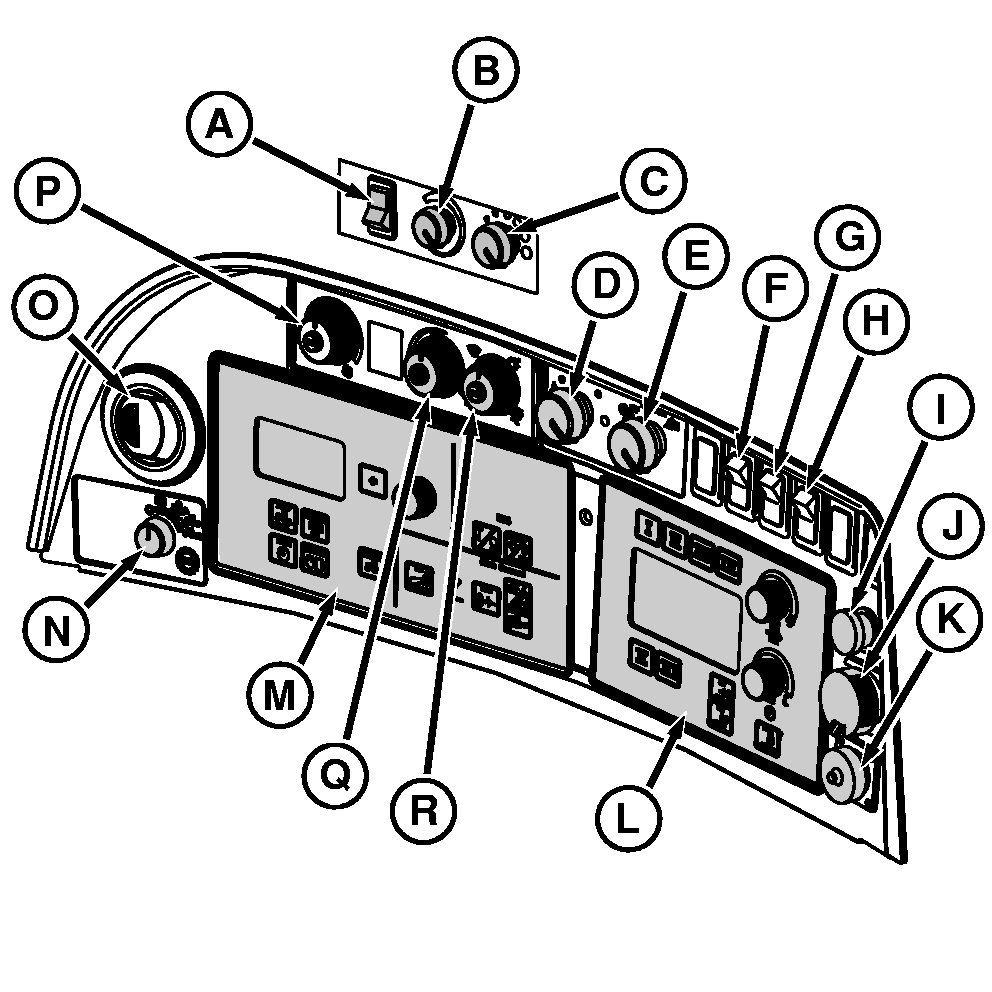

Right-Hand Console
* Tractors will have either a standard heating air conditioning unit, controls (A-C) or ClimaTrak controls (P-R).
A-Compressor Switch * (If Equipped)
B-Temperature Control Knob * (If Equipped)
C-Blower Motor Control Switch * (If Equipped)
D-Front Wiper Switch
E-Light Switch
F-Hazard Light Switch
G-MFWD Switch (If Equipped)
H-Rear Wiper Switch (If Equipped)
I-Lighter
J-Service ADVISOR Connector
K-Convenience Outlet
L-TouchSet Control Panel
M-CommandCenter
N-IVT Selector Knob
O-Air Vent
P-Blower Motor Control * (If Equipped)
Q-Temperature Control * (If Equipped)
R-Air Flow Mode Control * (If Equipped)
|
