Using Enabling Mode (Come Home)

Enabling mode allows tractor to be operated at a maximum of 8 km/h (5 mph) in forward position and 3 km/h (1.8 mph) in reverse at full throttle if certain transmission malfunctions occur.

NOTE: AutoClutch and IVT selector features will not operate when transmission is in Enabling Mode.

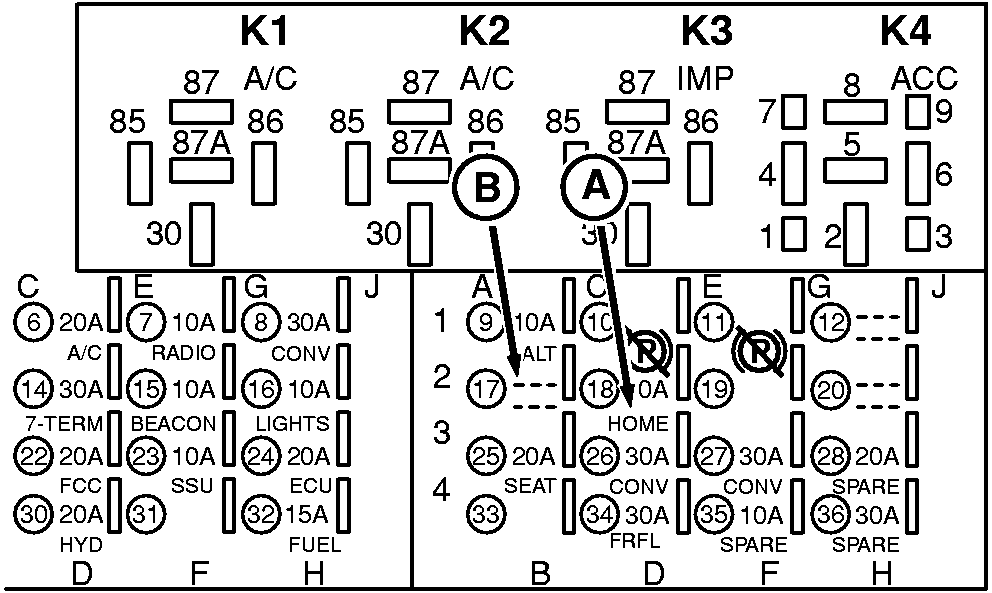

1. Move fuse # 18 (A) to fuse location # 17 (B).
2. Start tractor.
3. Depress clutch pedal.
4. Select Forward or Reverse direction.
5. Release clutch pedal to put tractor in motion.

A-Fuse # 18
B-Fuse Location # 17

OURX935,0000445 -19-27JAN06-1/1
