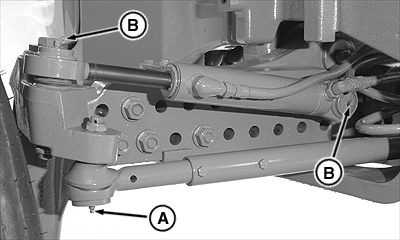

A-Tie Rods

B-Steering Cylinder Ends

C-Steering Spindles

D-Axle Pivot Pin

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. In extremely wet conditions service daily or every 10 Hours.

Lubricate each fitting on front axle.

OURX935,0000452 -19-05AUG08-1/1
