Lubricating MFWD Axle

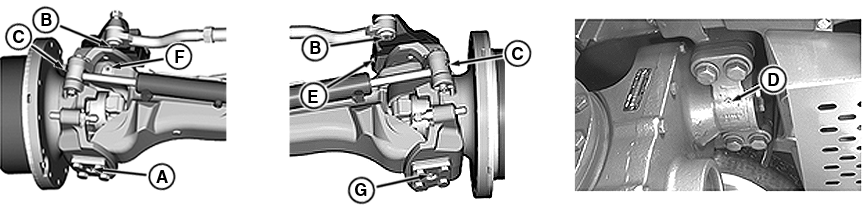

A-Kingpin Fittings, Bottom B-Tie Rod Fittings

C-Steering Cylinder Fittings D-Axle Pivot Fittings

E-Kingpin Fitting, Top, Right Side

F-Kingpin Fittings, Top, Left Side

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. In extremely wet conditions or where AutoTrac is used, service daily or every 10 Hours. Kingpins -Lubricate fittings (A, E, and F) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods -Lubricate fittings (B). Steering Cylinder -Lubricate fittings (C). Axle Pivot -Lubricate front and rear fittings (D).
