A-Lumbar Support Lever
B-Fold-Down Armrest

C-Flip-Up Armrest
D-Seat Height Adjustment
E-Armrest Adjustment
F-Armrest Angle Adjustment
G-Backrest Angle Adjustment

H-Seat Swivel
I-Fore-Aft Adjustment
J-Suspension Shock Dampening

K-Lateral Movement Lock
L-Fore-Aft Movement Lock

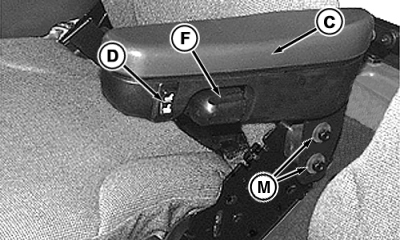

M-Armrest Height Adjustment Screws¹

IMPORTANT: If single lever control is installed on CommandARM, lever may contact right-hand console if seat is placed in full right-hand swivel position. Check seat swivel as well as seat height and fore-aft adjustment to avoid this contact.

Lumbar Support Adjustment - Rotate 5-position lever (A).

Weight and Height Adjustment - Turn key to "ON". Press lower portion of switch (D) to lower seat or press upper portion of switch to raise seat.

Armrest Height Adjustment - Press button (E) or loosen screws (M) to adjust armrest height.

Armrest Angle - Turn knob (F) to adjust armrest angle.

Backrest Angle - Pull up handle (G) and adjust backrest to desired angle.

Seat Swivel - Lift up on handle (H) to allow seat to swivel. Push down on handle to lock seat in position.

Fore-Aft Seat Position - Pull up on handle (I) to allow the seat to slide forward or backward.

Dampening - Handle (J) adjusts suspension shock. Moving lever to farthest down position provides the firmest ride; farthest up position provides softest ride.

Lateral Movement Lock - Push down on handle (K) to unlock lateral seat suspension. Pull up on handle to lock seat in position.

Fore-Aft Movement Lock - Push down on handle (L) to unlock fore and aft suspension. Pull up to prevent fore-aft movement.

OURX935,0000472 -19-12AUG08-1/1
