Setting IVT Options

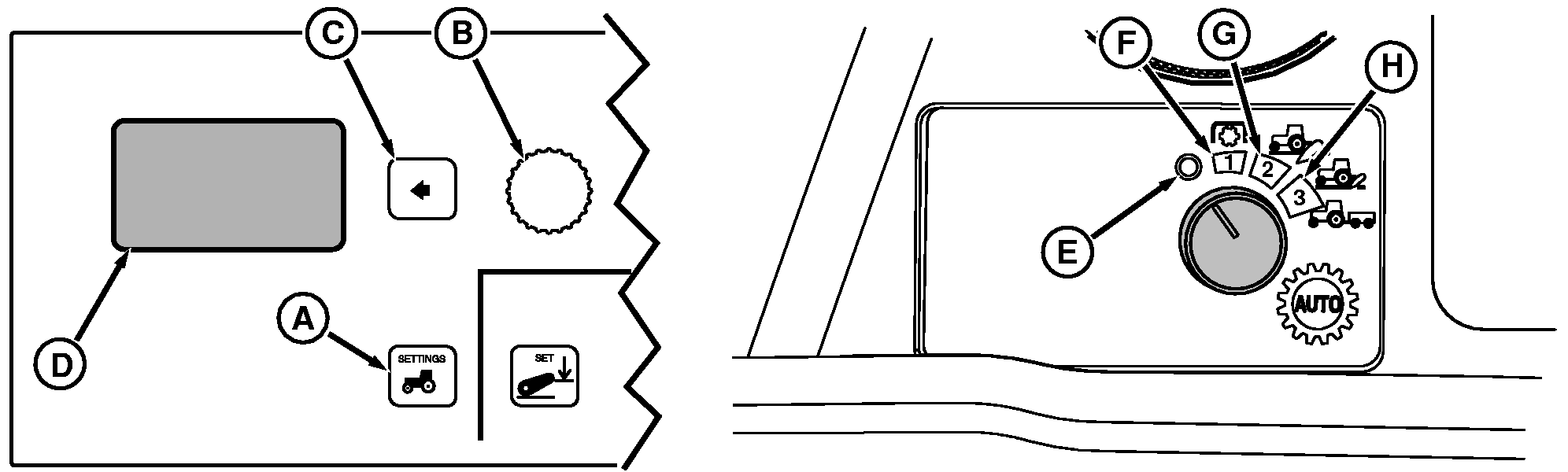

A-Vehicle Settings Switch B-Command Dial C-Select Switch

D-Display E-Position Off

F-Position 1-PTO G-Position 2-Heavy Tillage

H-Position 3-Transport or Light Tillage

NOTE: A Load Anticipation feature allows IVT to predict how much "hydraulic load" the engine expects from the activation of the hitch or a particular SCV function. For this to be activated, the SCV or hitch lever is placed in the detented position when the "hydraulic load" is decreasing. IVT remembers that load change. When it detects the same lever starting movement in the opposite direction , it responds with a short engine rpm boost thus providing more power to better handle on-coming load increase. Press Settings Switch (A) to view menu items on display (D), rotate Command dial (B) to highlight Transmission Options and press SELECT switch (C). See IVT Options table for a list of selections to choose from. Using Command dial, highlight desired setting and press SELECT switch again. IVT Options English Translation (if applies) Auto with PTO Auto with PTO Auto - no PTO Auto - no PTO Auto 2 Auto 2 Auto 3 Auto 3 Back Back

Either AUTO with PTO or AUTO-no PTO is used in conjunction with Position 1 (F) of the selector switch. Setting determines how much engine rpm "pull down" to allow under load, before transmission automatically downshifts. See Auto/PTO Options table for a list of selections to choose from. See Engine Speeds-IVT Options Auto With or Without PTO, for further information. NOTE: Using correct engine speed is very important for PTO operations. Refer to implement Operator's Manual for specific implement speeds. Run engine at 1817 engine rpm for 540 rpm PTO speed and at 2000 engine rpm for 1000 rpm PTO speed operation. Field Cruise can be used to limit engine speed. Auto/PTO Options English Translation (if applies) Low RPM Low RPM Med/Low RPM Med/Low RPM Med/High RPM Med/High RPM High RPM High RPM

OURX935,0000474 -19-15AUG08-1/2

Auto/PTO Options

Auto 2 Options

Auto 3 Options
