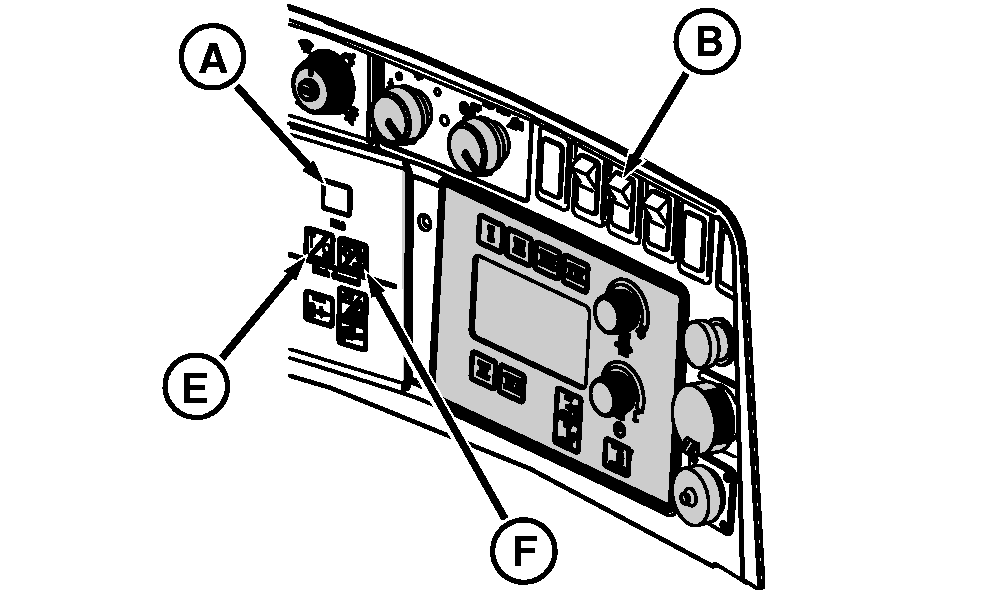

A-Automatic Power Shift Switch

B-MFWD Switch
C-Hitch Raise/Lower Switch

D-PTO Switch
E-ON/OFF Switch

F-Learn/Save Switch

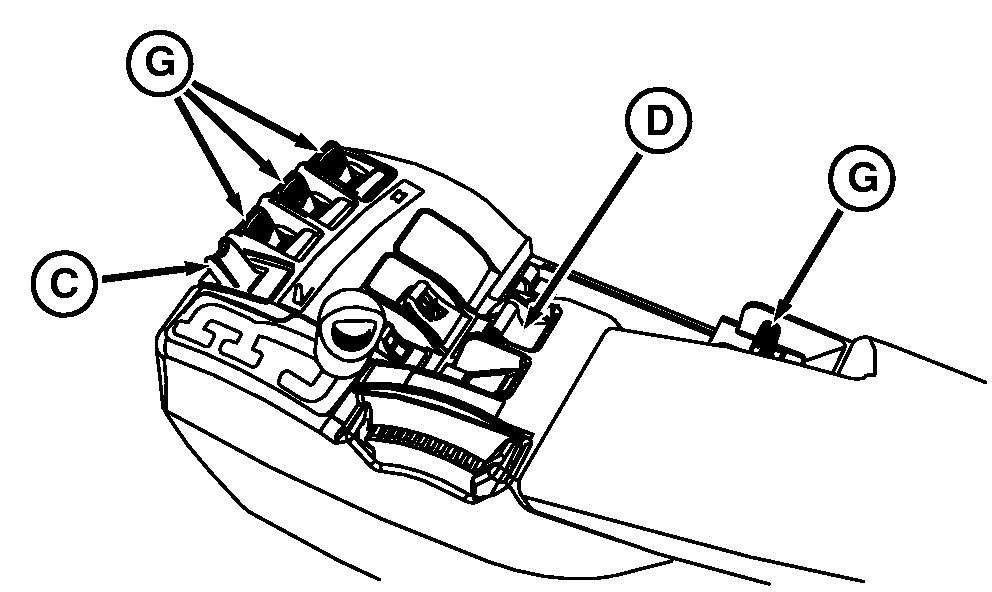

G-SCV Switches

Implement Management System (IMS) is used to combine any of the following functions together to make one sequence performed with the touch of one switch.

NOTE: APS maximum gear must be set each time the tractor is started.

APS switch (A) can be cancelled or resumed during LEARN mode.

APS is cancelled by programing a transmission shift in IMS. (See Operating Automatic Powershift in Operating the Tractor Section.)

MFWD switch (B) can be turned on or off during sequence execution. During sequence execution, switch must be in ON position.

Hitch Raise Lower Switch (C) can be activated to raise or lower hitch during an IMS sequence.

Rear PTO Switch (D) can be switched ON or OFF by IMS.

Manually operating PTO requires rear PTO switch to be turned OFF and then ON again.

ON/OFF Switch (E) enables or disables IMS sequence.

LEARN/SAVE Switch (F) enables programming a sequence of functions for IMS. Pressing a second time ends the string of functions learned for that sequence.

SCV Switches (G) control the raising and lowering of individual implements.

NOTE: Learn mode requires SCV control to be in detent position . Flow Rate and Timed detent will not be learned and can be changed at any time. Timed detent is used to cancel SCV functions. SCVs can be operated manually without causing a sequence to abort.

IMS can learn four functions for SCVs:

• Extend Detent
• Retract Detent
• Float
• Neutral (Used to cancel Float or Detent operations)

Differential lock can be engaged or disengaged during a sequence by depressing switch on floor board between clutch and brakes.
