Using QUIK-TATCH Weights

Up to 22 QUIK-TATCH weights can be installed on tractors.

Install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

Run retaining bolts (B) through holes and secure with a nut to hold six weights or fewer in position. Tighten bolts.

Weight Attaching Bolts - Specification

Bolt -Torque 230 N·m (170 lb-ft)

Insert retainers between weights, one with threaded hole upward (C) and the other with threaded hole downward when eight or more weights are installed. Tighten bolts.

Weight Attaching Bolts - Specification

Bolt -Torque 230 N·m (170 lb-ft)

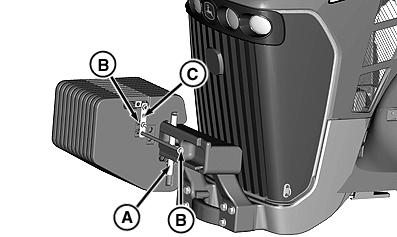

A-Center

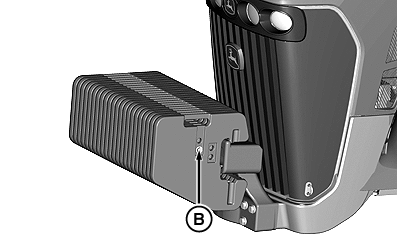

B-Retaining Bolts
C-Retainer with Hole Up
