Two-Wheel Drive Front Axle and Wheel Bolt Tightening

causym CAUTION: Avoid the possibility of personal injury. Never operate the tractor with loose wheel bolts. Wheel bolts are critical and require retightening.

Tighten axle bolts (A) and wheel bolts (B) to specification.

Axle and Wheel Bolts - Specification

Axle Bolts -Torque 600 N·m (445 lb-ft)
Wheel-to-Hub -Torque 310 N·m (230 lb-ft)

Drive tractor about 100 meters (110 yd), and retighten wheel-to-hub bolts.

Retighten bolts after working 3 HOURS and again after 10 HOURS .

Tighten bolts DAILY for the first week of operation.

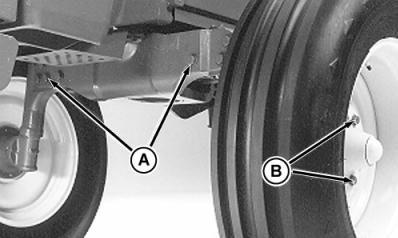

RW55246A


A-Axle Bolts
B-Wheel Bolts

OURX935,0000674 -19-03JAN08-1/1
