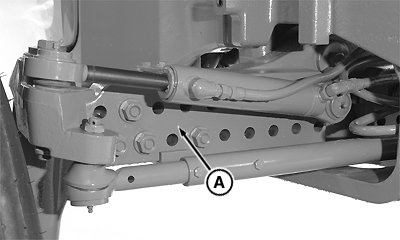

Two-Wheel Drive Front Axle Tread SettingFront axles (A) have seven standard tread settings. |
|
| Tire Size | Valve Stem Location | Axle Position | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-24 | Out | 1525 mm (60 in.) | 1625 mm (64 in.) | 1725 mm (68 in.) | 1830 mm (72 in.) | 1930 mm (76 in.) | 2030 mm (80 in.) | 2135 mm (84 in.) |
| In | 1625 mm (64 in.) | 1725 mm (68 in.) | 1830 mm (72 in.) | 1930 mm (76 in.) | 2030 mm (80 in.) | 2135 mm (84 in.) | 2235 mm (88 in.) | |
| 16.5L-16.1 | Out | 1660 mm (65.5 in.) | 1760 mm (69.5 in.) | 1865 mm (73.5 in.) | 1965 mm (77.5 in.) | 2065 mm (81.5 in.) | 2170 mm (85.5 in.) | 2270 mm (89.5 in.) |
