Dual Wheel to Hub Installation

causym CAUTION: Avoid the possibility of personal injury. Failure to follow torquing sequence and procedure will result in damage to equipment and may result in personal injury. Wheel bolts are critical and require repeated torquing.

NOTE: Check the hole sizes on duals, the wheel rim may have one tight fit hole smaller than the other holes and one slot fit hole 180° from the tight fit hole for improved wheel centering.

Install and hand tighten bolts (A).

Using a star shaped pattern, torque all bolts as needed to maintain torque.

Specification

All Bolts -Torque 600 N·m (445 lb-ft)

Drive tractor 100 meters (110 yd) and retighten bolts.

Tighten again at 3 HOURS , 10 HOURS , and DAILY for the first week of operation.

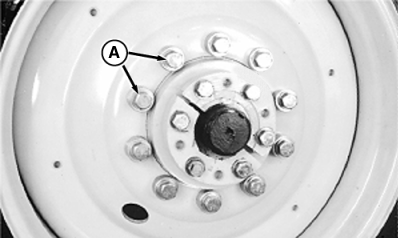

RXA0081037

Standard Hub Shown


A-Wheel to Hub Bolts
