Operating the Radio with Optional Compact Disc Player-Early Model Tractors

Operating compact disc player

1. Turn on receiver by depressing button ON (A) button or Power (B).
2. Insert disc into compact disc slot (D) label side up.
3. Press (N) to forward to next track. Press (O) to reverse to the beginning of the track.
4. Press CD REPEAT (E) to repeat the current track. Press RDM (F) for random track selection.
5. Press and hold (G) to fast reverse. Release to play at normal speed.
6. Press PAUSE (H) to pause the CD. Press PAUSE again to resume play.
7. Press and hold FF (I) to fast forward. Release button to play at normal speed.
8. Press (C) to eject CD
9. Press SCAN/DIM (L) to advance to next track on CD. The CD will play 10 seconds of that track and then play each successive track for 10 seconds. Press SCAN/DIM again to cancel.

Change display clock function to 12 or 24 hour mode.

The 12 hour mode distinguishes between AM and PM and 24 hour mode operates as military time.

1. To change mode press and hold the "DSPL/TM SET" button until clock display digits begin to flash (approximately 2 seconds).
2. To change from 12 to 24 hour time format, press and release the number "5" preset station button. If pressed a second time, it will toggle back from 24 to 12 hour mode.
3. Wait 5 seconds without pushing any radio buttons for clock to return to regular operation.

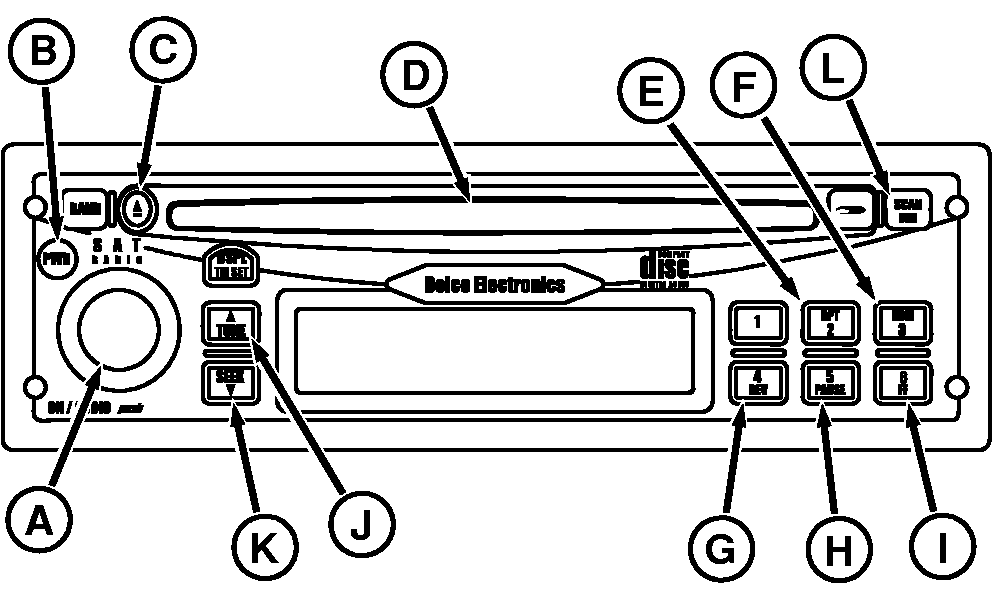

A-On/Audio/Volume
B-Power
C-Tape¹/CD² Eject
D-Tape¹/CD² Slot
E-CD Repeat
F-RDM-CD Random
G-Rev/Fast Reverse
H-Pause
I-FF-Fast Forward
J-Tune-Forward
K-Seek-Reverse
L-Scan/Dim

OURX935,000046C -19-12MAR09-1/1
