Powershift Transmission Calibration

NOTE: The powershift transmission only needs to be recalibrated if transmission shift characteristics change after transmission oil and filter change.

If shift characteristics change, use following procedure to calibrate the transmission.

IMPORTANT:

a. Poor shift quality and/or transmission damage may occur if the HY-GARD or JDM J20C specifications are not followed. To ensure proper shift quality, an oil meeting HY-GARD or JDM J20C specifications must be used.
b. Do not operate tractor if oil is not above mark (C) in sight gauge with engine off.

PROCEDURE:

NOTE: Do not perform oil check within eight hours of transporting tractor in 15th or higher gear.

1. Start tractor engine and warm transmission/axle oil to above 35°C (95°F). Use CommandCenter display to check transmission/axle temperature. (See CommandCenter Section).

2. After oil is at desired temperature, drive to a level surface.

3. Shift transmission lever to Park, set engine speed at 1200 rpm and run for 3 minutes.

NOTE: DO NOT step on brake pedal during this segment of the procedure to avoid additional oil flow to the axles and resulting in an inaccurate oil level check.

4. Reduce engine speed to slow idle, shut engine OFF, and wait 5 minutes.

5. Check oil level on sight gauge on rear of transmission. Oil level should be between marks (A) and (B).

RXA0099427

Three Line Powershift Transmission Sight Gauge and Labels

RXA0100689

Two Line Powershift Transmission Sight Gauge/Labels 9530, 9630 Tractors

RXA0100424

CommandCenter Transmission/Axle Oil Temperature Display


A-Top Oil Level Mark
B-Lower Oil Level Mark
C-Low Level Mark

RW29387,00000EA -19-30APR09-1/9

1. Place shift lever in PARK position. Start the engine.

2. Press the Settings switch (A) on the CommandCenter™ panel.

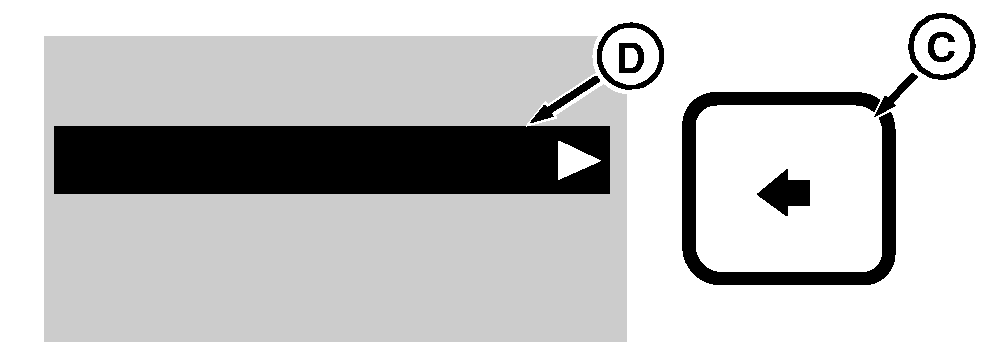

3. Turn the CommandCenter dial (B) to highlight Diagnostics on display (D), and press the select switch (C).

4. Turn the dial to highlight Controllers on display (D), then press and hold the select switch until the next menu appears.


A-Settings Switch
B-CommandCenter Dial
C-Select Switch
D-Display

RXA0091469

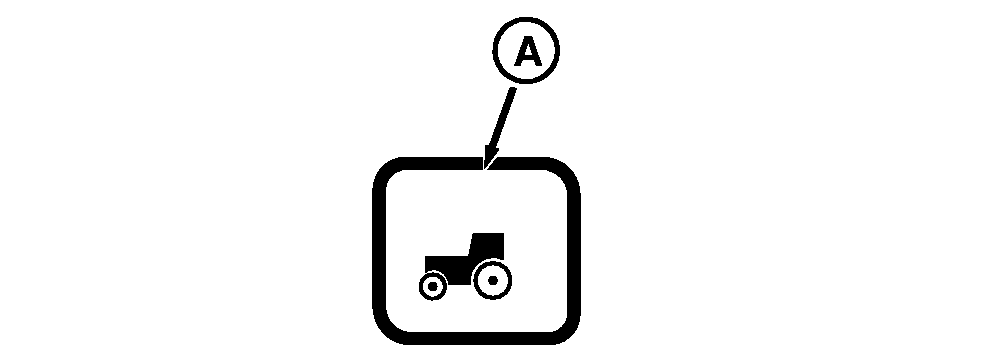

Settings Switch

RXA0091511

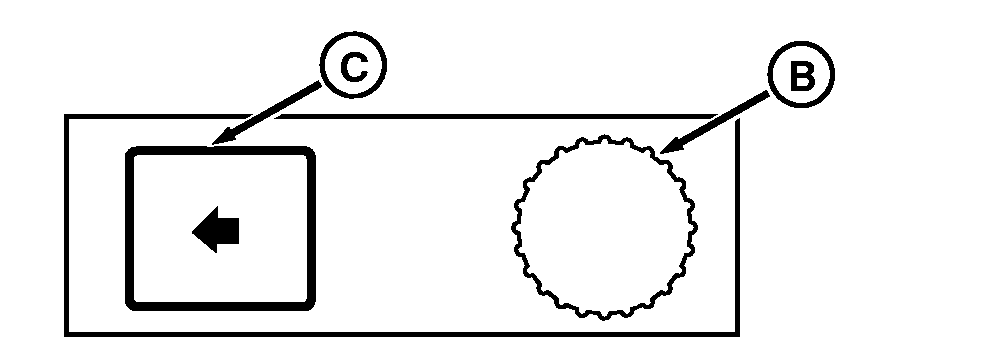

CommandCenter Dial

RXA0091470

RW29387,00000EA -19-30APR09-2/9

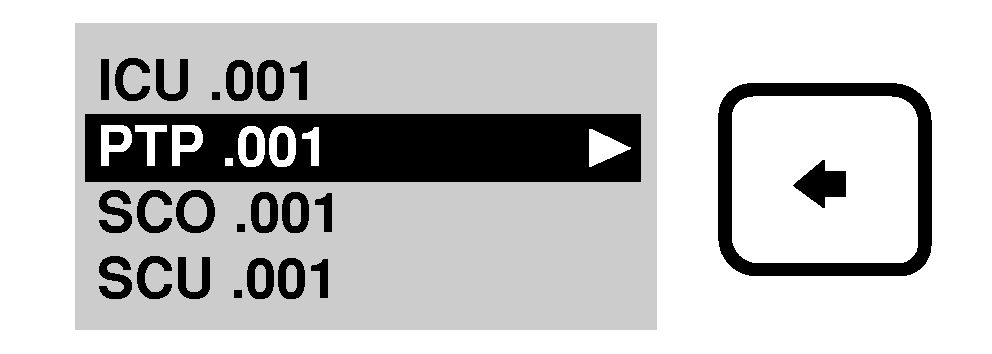

5. Turn the dial to highlight PTP.001 , and press the select switch.

RXA0091472

RW29387,00000EA -19-30APR09-3/9

NOTE: Operator presence must be detected by PTP in this step to proceed.

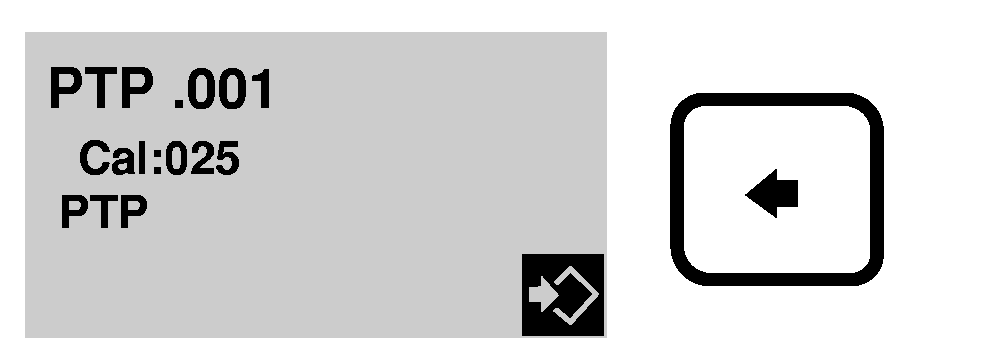

6. Turn the dial to select PTP Address 25 , and press the select switch.

RXA0091473

RW29387,00000EA -19-30APR09-4/9

IMPORTANT: If CAL does not appear, tractor will move if shift lever is moved into forward or reverse position.

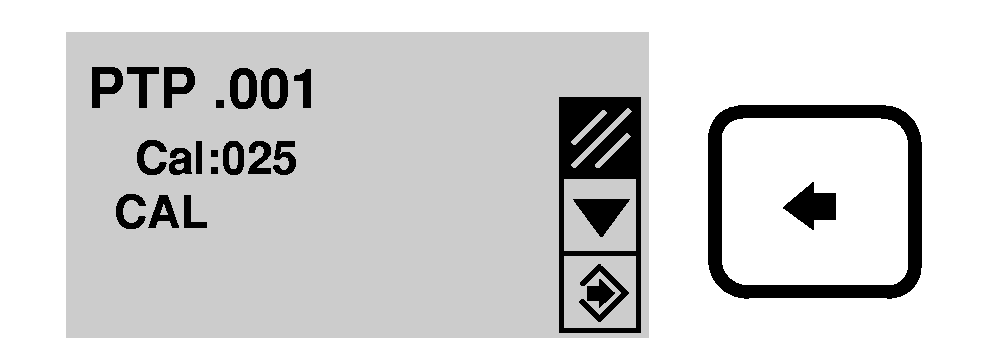

7. CAL should appear on the CommandCenter display. This indicates transmission calibration is ready to begin.

RXA0091474

RW29387,00000EA -19-30APR09-5/9

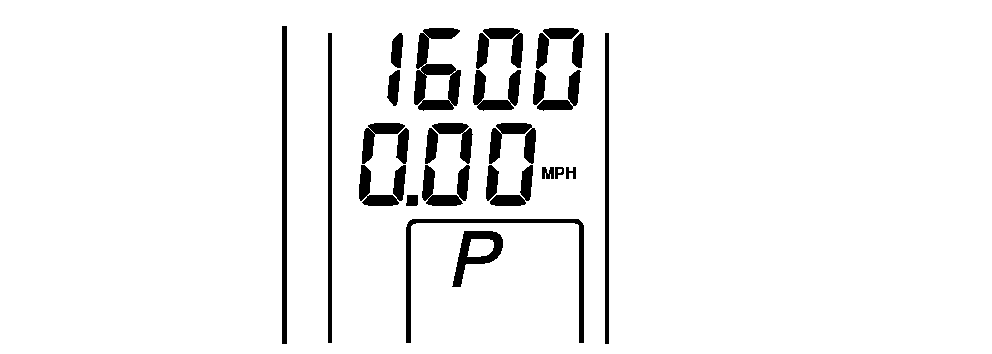

8. Adjust throttle to set the engine at 1600 rpm.

9. Move the shift lever to the F or R position to start the calibration.

RXA0091475

RW29387,00000EA -19-30APR09-6/9

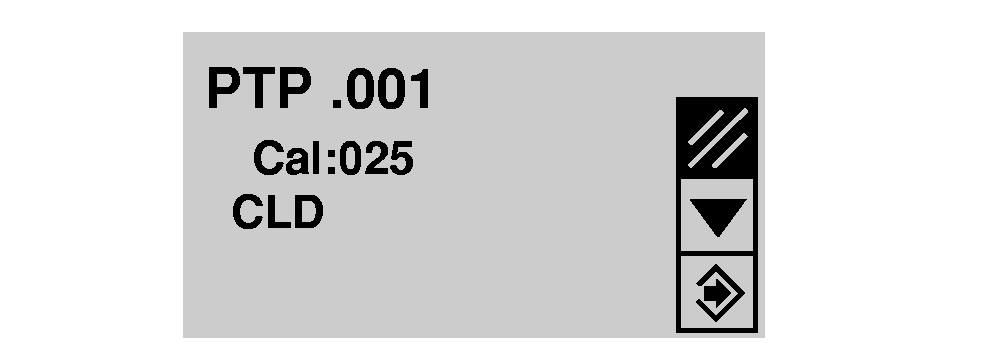

10. If CLD appears which indicates the powershift transmission sump temp is less than 50°C. The calibration process will continue in order to warm the sump and automatically begin calibration when the sump is warm enough. If the powershift sump temperature (available in PTP Address 33) is more than a few degrees below 50°C, it may be faster to warm the sump by shuttle-shifting the tractor prior to attempting a calibration.

NOTE: In addition to powershift sump temperature available in PTP Address 33, it is also available on the lower half of the CommandCenter display (by turning the dial) before entering PTP diagnostic addresses.

RXA0091476

RW29387,00000EA -19-30APR09-7/9

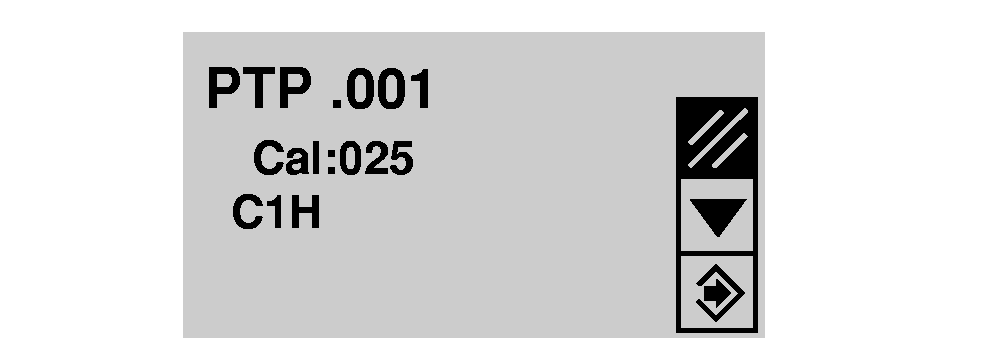

11. C1H will appear which indicates calibration has started. Once calibration begins, do not:

  • Manually change the throttle
  • Move the shift lever
  • Depress the clutch pedal

or calibration will be aborted and must be repeated.

12. C1H indicates "Clutch 1 Hold calibration" is in progress. Hold stages for clutches 2, R, A, B, C, L, M, and H then follow in order. When all nine hold stages are complete, the fill stages for each clutch are performed in the same order. "C1F," "C2F," etc. will be displayed.

RXA0091477

RW29387,00000EA -19-30APR09-8/9

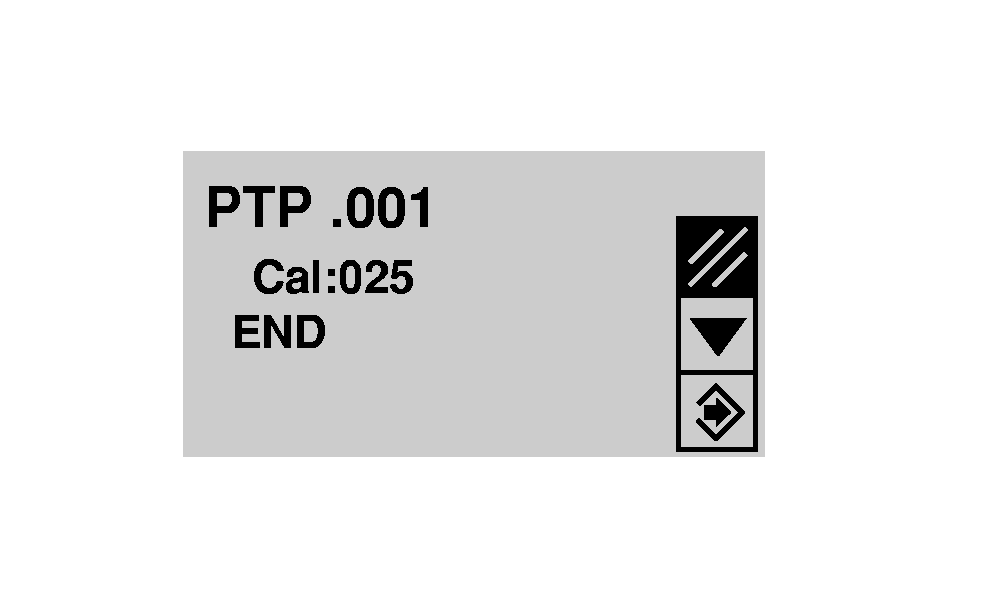

13. When END appears, calibration is complete. Depending on starting sump temperature, calibration typically takes 12-15 minutes.

If calibration aborts due to a fault (i.e. no engine or transmission activity is heard for a period of 30 seconds), the three-letter fault message will display on the CommandCenter, and it should be noted and reported. Another cal attempt may be made if so desired.

14. Turn the CommandCenter dial to select PTP Address 27 . Record the clutch calibration results for each clutch as they are displayed.

15. Turn the engine off. The PTP will store the cal results just obtained.

RXA0091478

RW29387,00000EA -19-30APR09-9/9
