OMAR309177: 9230, 9330, 9430, 9530 and 9630 Tractors, Block File: RW29387_00002C8_19

Using Cast Hub Wheel Weights

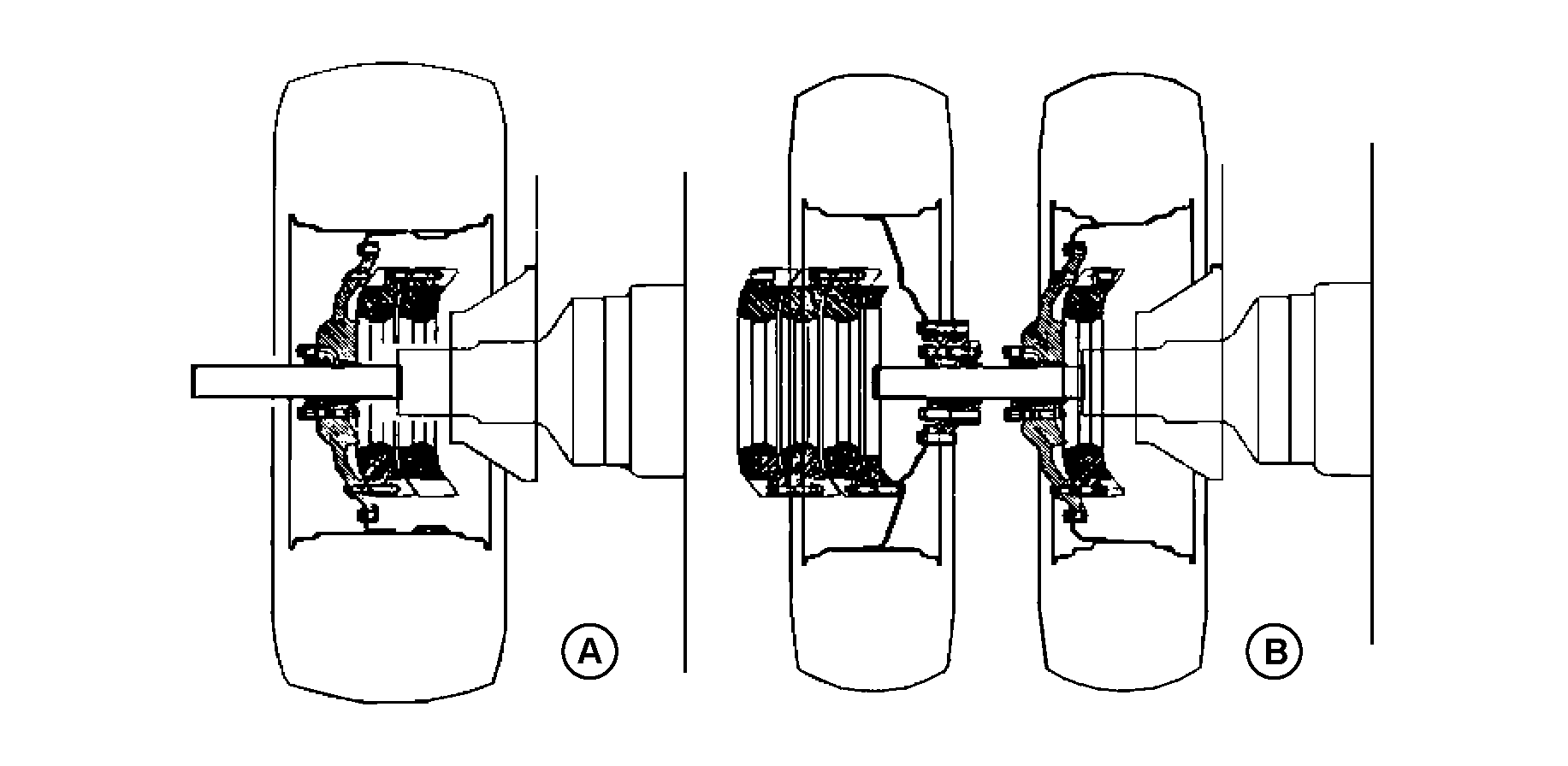

A-Single Wheel (100 mm Axle)

B-Dual Wheels (100, 110 and 120 mm Axle)

causym CAUTION: When installing weights, use appropriate equipment or see your John Deere Dealer.

Cast iron weights of 75 kg (165 lb), 205 kg (450 lb) or 635 kg (1400 lb) are available for cast or steel wheels.

Weights can be installed on inside or outside of wheel. Also 635 kg (1400 lb) cast weights are available to be installed on inside of cast wheel. Use diagrams showing placement of weights or see your John Deere Dealer.

RW29387,00002C8 -19-05NOV07-1/2

Weight Attaching Bolts-Specification

M16-Bolt-Torque...310 N·m (230 lb-ft)
M20-Bolt-Torque...610 N·m (450 lb-ft)

Install weights on wheel.

For additional weights, install bolts in previous weight. Rotate alternate weight to align bolts with weight holes.

Tighten bolts and then retighten after driving approximately 100 meters (110 yd).

Retighten bolts after working 3 HOURS and again after 10 HOURS .

Check torque every 250 hours .

IMPORTANT: Inside wheel weight must have at least 25 mm (1 in.) clearance between weight and tractor components.

Do NOT stack more than 690 kg (1520 lb) of weights together-three 205 kg (450 lb) weights and one 75 kg (165 lb) weight.

RW29387,00002C8 -19-05NOV07-2/2
