Tow Cable-If Equipped

IMPORTANT:

1. Correctly use tow cable by pulling from front of tractor in a straight forward direction. Failure to do so could result in damage tractor or frame.
2. Do not use tow cable to hook tractors in tandem to pull a draft load.
3. Pulling a tractor with loaded equipment can cause excessive strain on drawbar support and is greatly increased by speed and rough ground conditions.
4. Inspect tow cable and/or drawbar pin for wear and replace when necessary.
5. Attach tow cable to storage bracket and keep tight, when not in use.

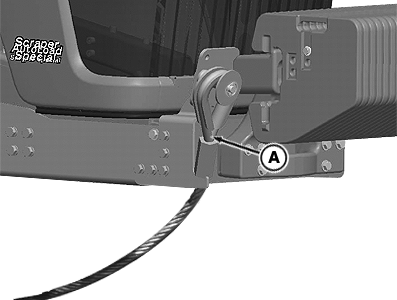

Use tow cable (A) to pull tractor or tractor with scraper from soft or wet soil conditions.

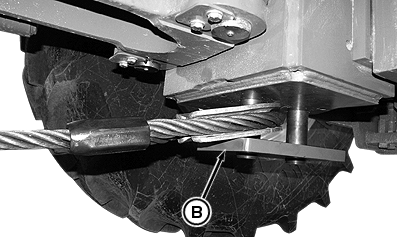

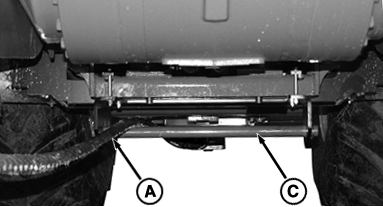

Attach tow cable to drawbar support (B) and support cable with crossbar (C).

NOTE: Install crossbar support "L" brackets with bend towards center to limit cable side movement and interference with right front tire.

IMPORTANT: Correctly use tow cable by pulling from front of tractor in a straight forward direction.

A-Tow Cable
B-Drawbar Support
C-Crossbar

OU1092A,00001CC -19-08JUL08-1/1
