Observing Standard Drawbar Load Limitations

IMPORTANT: Certain heavy equipment can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough ground. Maximum static vertical load on drawbar should not be exceeded. See Drawbar Load Limit tables.
Tighten drawbar locking bolts (B) and shims to 435 N·m (322 lb-ft) and drive slowly, if heavier loads are expected.
See your John Deere Dealer to field install a drawbar support that will increase vertical load capacity above 2042 kg (4500 lb).

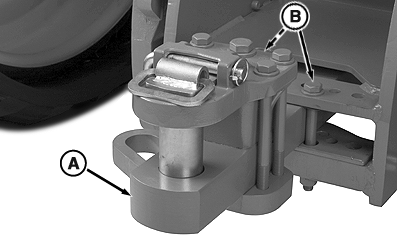

RXA0093927


A-Drawbar
B-Locking Bolts

RW29387,0000128 -19-19MAY08-1/2

Drawbar Vertical Load Limitations

Model Drawbar Category and Support End of PTO Shaft to Draw Pin Hole Distance Drawbar Position Maximum Vertical Drawbar Load

9430T Cat. 4 Drawbar (All Supports) 508 mm (20 in.) Front Hole in Drawbar (Long Position) 2268 kg (5000 lb)
9430T Cat. 4 Drawbar (All Supports) 358 mm (14 in.)a Rear Hole in Drawbar (Short Position) 2470 kg (5450 lb)
9430T Cat. 4 Drawbar and Cat. 4 Drawbar Reinforcement Kit (Except with Wide-Swing Drawbar) 508 mm (20 in.) Front Hole in Drawbar (Long Position) 4082 kg (9000 lb)
9430T Cat. 4 Drawbar and Cat. 4 Drawbar Reinforcement Kit (Except with Wide-Swing Drawbar) 358 mm (14 in.)a Rear Hole in Drawbar (Short Position) 4990 kg (11000 lb)
9430T Cat. 4 Drawbar and Cat. 4 Drawbar Reinforcement Kit (With Wide-Swing Drawbar) 508 mm (20 in.) Front Hole in Drawbar (Long Position) 3400 kg (7500 lb)
9430T Cat. 4 Drawbar and Cat. 4 Drawbar Reinforcement Kit (With Wide-Swing Drawbar) 358 mm (14 in.)a Rear Hole in Drawbar (Short Position) 4580 kg (10100 lb)
9430T-9630T Cat. 5 Drawbar (All Supports) N/Aa Single Position Drawbar 4580 kg (10100 lb)
9430T-9630T Cat. 5 Drawbar and High Capacity Drawbar Kit (Wide-Swing Only) N/Aa Single Position Drawbar 5440 kg (12000 lb)
9430T-9630T Cat. 5 Drawbar (Except with Wide-Swing Drawbar Support) 507 mm (20 in.) Front Hole in Drawbar (Long Position) 3400 kg (7500 lb)
9430T-9630T Cat. 5 Drawbar (Except with Wide-Swing Drawbar Support) 394 mm (15.5 in.)a Rear Hole in Drawbar (Short Position) 4580 kg (10100 lb)
9430T-9630T Cat. 5 Drawbar (With Wide-Swing Drawbar Support) 507 mm (20 in.) Front Hole in Drawbar (Long Position) 3220 kg (7100 lb)
9430T-9630T Cat. 5 Drawbar (With Wide-Swing Drawbar Support) 394 mm (15.5 in.)a Rear Hole in Drawbar (Short Position) 4580 kg (10100 lb)
9430T-9630T Cat. 5 Drawbar and High Capacity Drawbar Kit (Wide-Swing Only) 507 mm (20 in.) Front Hole in Drawbar (Long Position) 3855 kg (8500 lb)
9430T-9630T Cat. 5 Drawbar and High Capacity Drawbar Kit (Wide-Swing Only) 394 mm (15.5 in.)a Rear Hole in Drawbar (Short Position) 5440 kg (12000 lb)

Category 4 = 51 mm (2 in.) Diameter Pin
Category 5 = 70 mm (2.75 in.) Diameter Pin
aNot Intended for PTO Use



IMPORTANT: Check clearance between PTO shaft and drawbar hammer strap before operating PTO to avoid interference or possible damage to PTO shaft.

RW29387,0000128 -19-19MAY08-2/2
