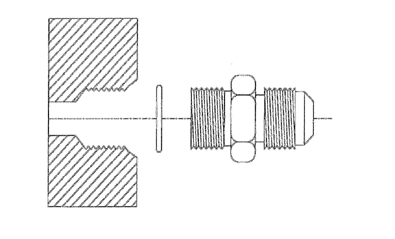

Straight O-Ring Boss

CM992600057-UN-12JAN00

1. Inspect the O-ring boss seat of fitting for dirt or defects.
2. Lubricate the O-ring with O-ring lube or petroleum jelly.
3. Place tape (preferably electrical tape) over the threads to protect the O-ring.
4. Slide the O-ring over the tape and into the O-ring groove of fitting.
5. Tighten fitting until the hex bottoms out.
