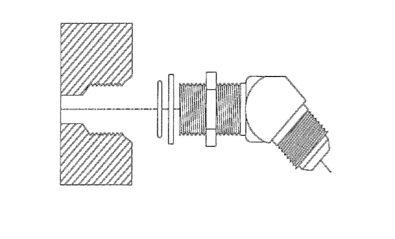

Angled O-Ring Boss

CM992600058
CM992600058-UN-12JAN00

  1. Remove the locknut and backup washer completely from the “head-end” of the fitting.
  2. Screw the fitting into the threaded boss until the backup washer comes into contact with the face of the boss.
  3. Turn the fitting “head-end” counterclockwise to the proper index (a maximum of one turn).
  4. Hold the fitting “head-end” with a wrench and tighten the locknut until the backup washer bottoms out. Be careful when installing fittings. Do Not twist hoses when tightening.

AG,T803584,246-19-20000614
