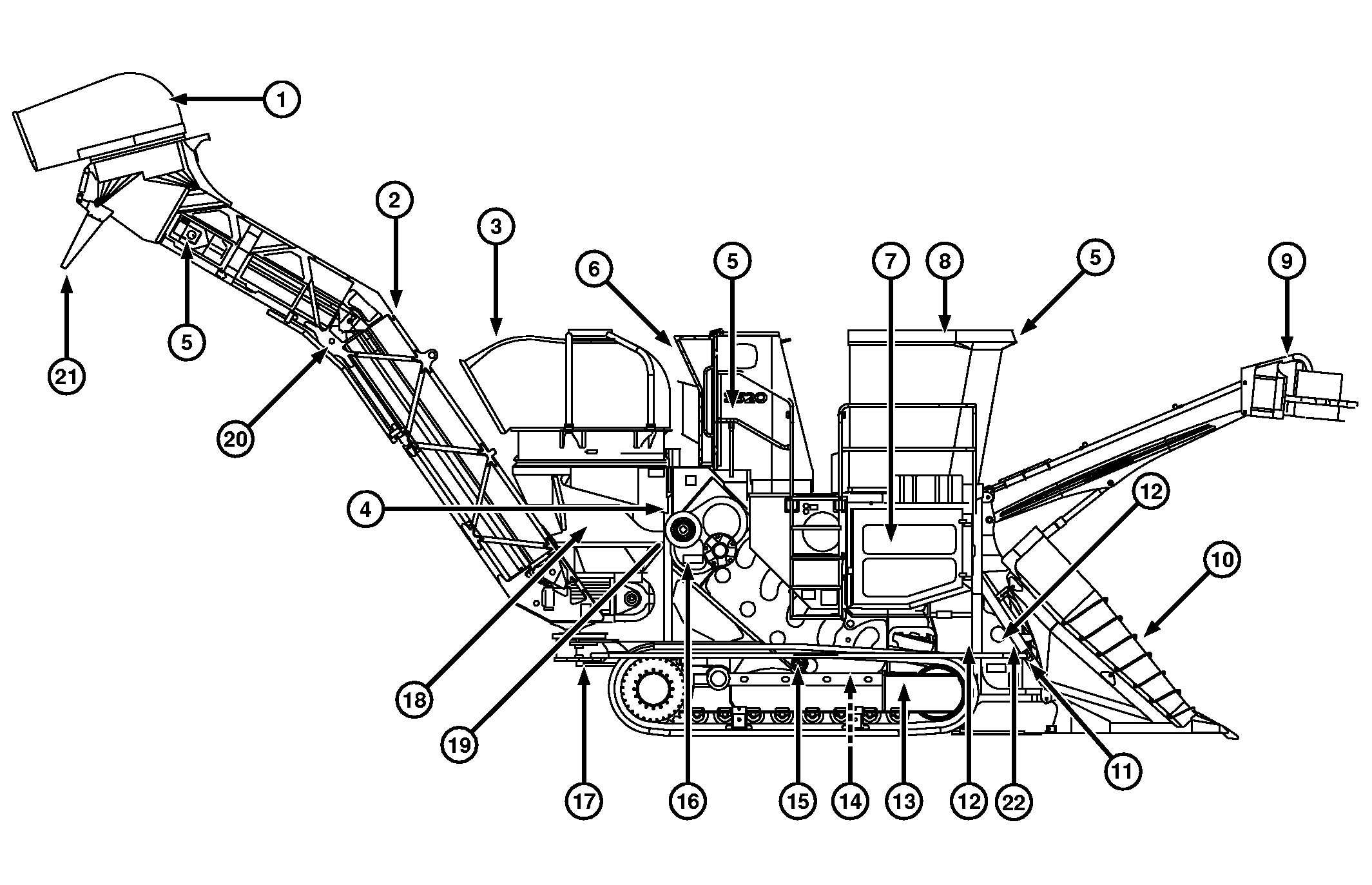

Harvester Component Locations

CQ281991-UN-15JAN10

1 - Secondary Extractor

2 - Elevator

3 - Primary Extractor

4 - Lift Lug

5 - Lights (3 areas)

6 - Air Intake Screens

7 - Engine Compartment

8 - Cab

9 - Topper

10 - Crop Dividers/Scrolls

11 - Binding Hole (Transporting)

12 - Knock Down Roller (2)

13 - Basecutter

14 - Butt-Lifter Roller

15 - Feed Rollers

16 - Chopper Box

17 - Tow Loops

18 - Basket

19 - Chopper Flywheel

20 - Cart Guard

21 - Bin Flap

22 - Basecutter Lift Accumulators
