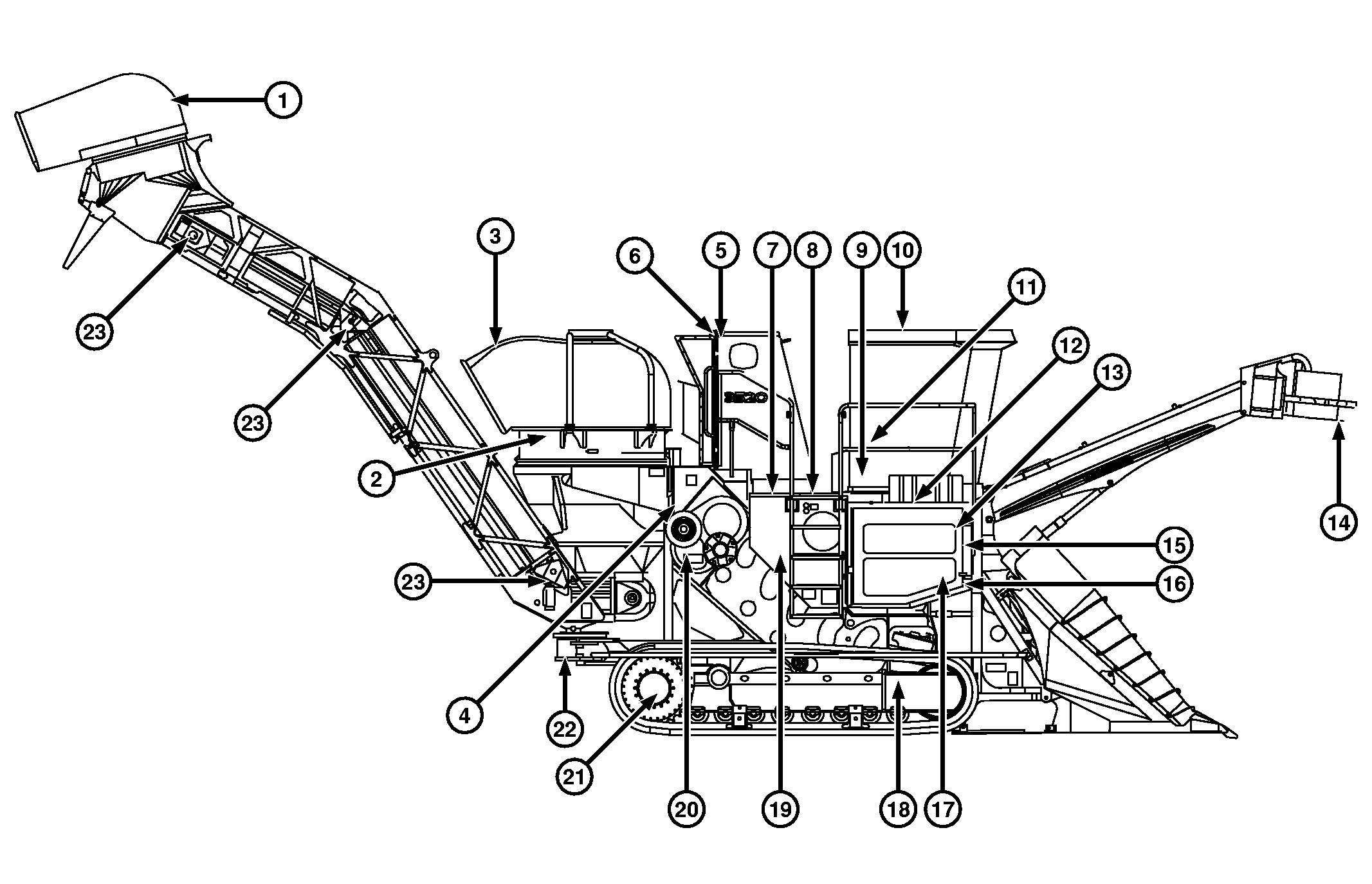

Harvester Service Point Locations

CQ281992-UN-03JUL12

1 - Secondary Extractor Fan

2 - Primary Extractor Fan

3 - Primary Extractor Hood

4 - Engine Air Filters (Left Side)

5 - Oil Cooler ­ AC Condenser

6 - Radiator

7 - Hydraulic Filters (Right-hand Side)

8 - Fuel Tank

9 - Fresh Air AC Filter (Outside Left of Cab)

10 - Recirculation AC Filter (Behind Training Seat)

11 - Fuses And Relays (Remove Training Seat Back Cushion)

12 - Windshield Wiper Fluid (Left Side)

13 - Fuel/Water Separator Filter

14 - Topper Blades

15 - Engine Oil Filter (Left Side)

16 - Pump Drive Oil Level (Right-hand Side)

17 - Engine Oil Dipstick (Left Side)

18 - Basecutter Gearbox

19 - Hydraulic Oil Tank (Right-hand Side)

20 - Chopper Gearbox (Right-hand Side) & Bearings (Left Side)

21 - Final Drive (Both Sides)

22 - Swing Table

23 - Elevator Chain Adjustment
