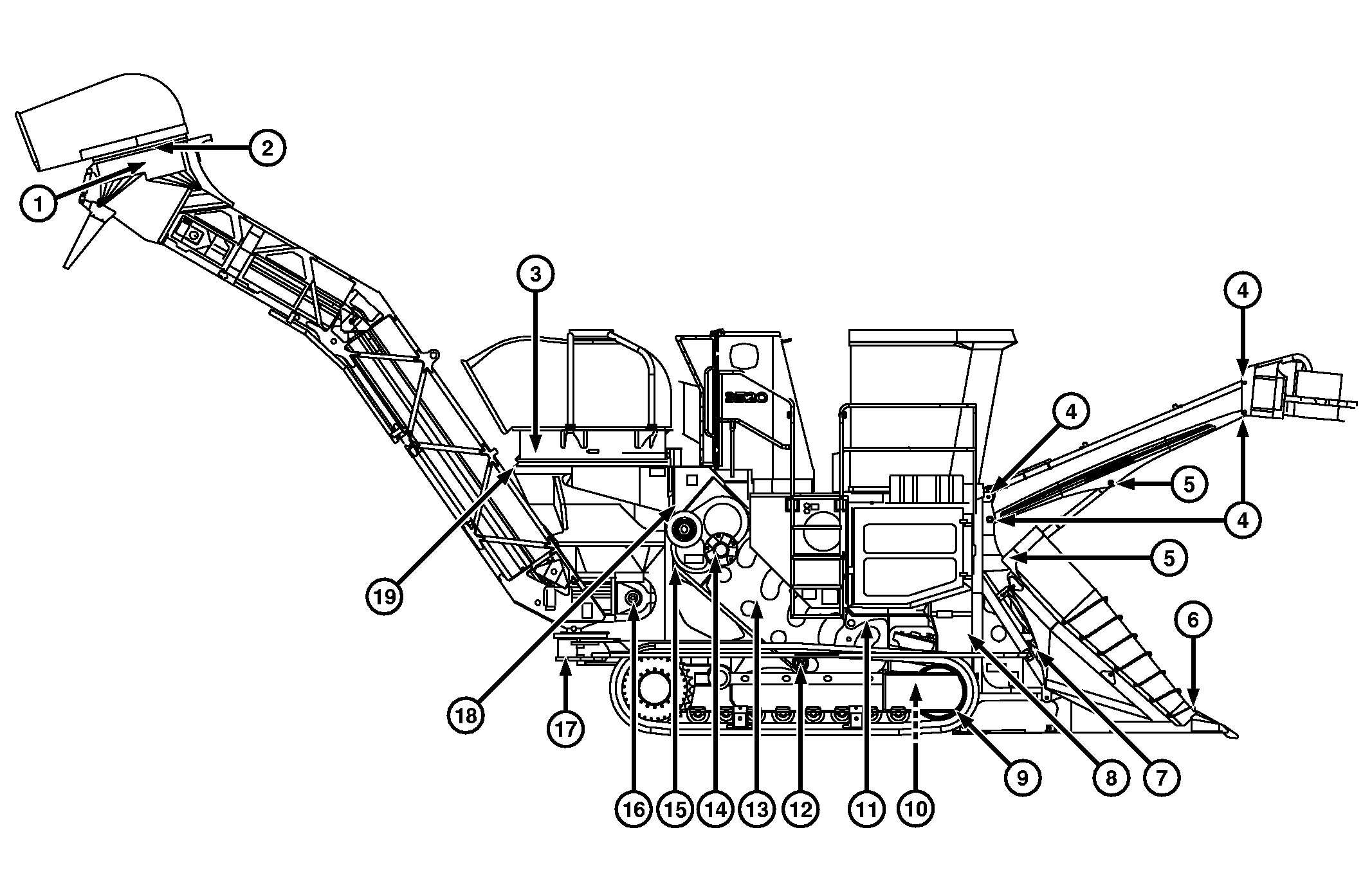

Harvester Grease Point Locations

CQ281993-UN-03JUL12

1 - Secondary Extractor Mounting Bearing — 1 Fitting

2 - Secondary Extractor Hood Ring — 2 Fittings

3 - Primary Extractor Hood Ring — 5 Fittings

4 - Topper Upper and Lower Mounting Pins — 4 Fittings

5 - Topper Lift Cylinder Rod and Butt End — 2 Fittings

6 - Scroll Bearings — 2 Fittings

7 - Crop Divider Cylinders / Mounting Pins— 10 Fittings

8 - TrackRod and Butt End of Cylinders — 4 Fittings

9 - Wheel Struts — 10 Fittings

10 - Basecutter Leg

11 - Wheel - Steering Cylinder Pins — 4 Fittings

12 - Feed Roller Bearing — 9 Fittings

13 - Feed Roller Cradle Pins — 10 Fittings

14 - Chopper Rollers — 2 Fittings

15 - Sill Roller

16 - Tail Shaft Bearings — 2 Fittings

17 - Swing Table — 9 Fittings

18 - Chopper Curtain Agitator — 1 Fitting

19 - Elevator Cable Support Sheave — 2 Fittings
