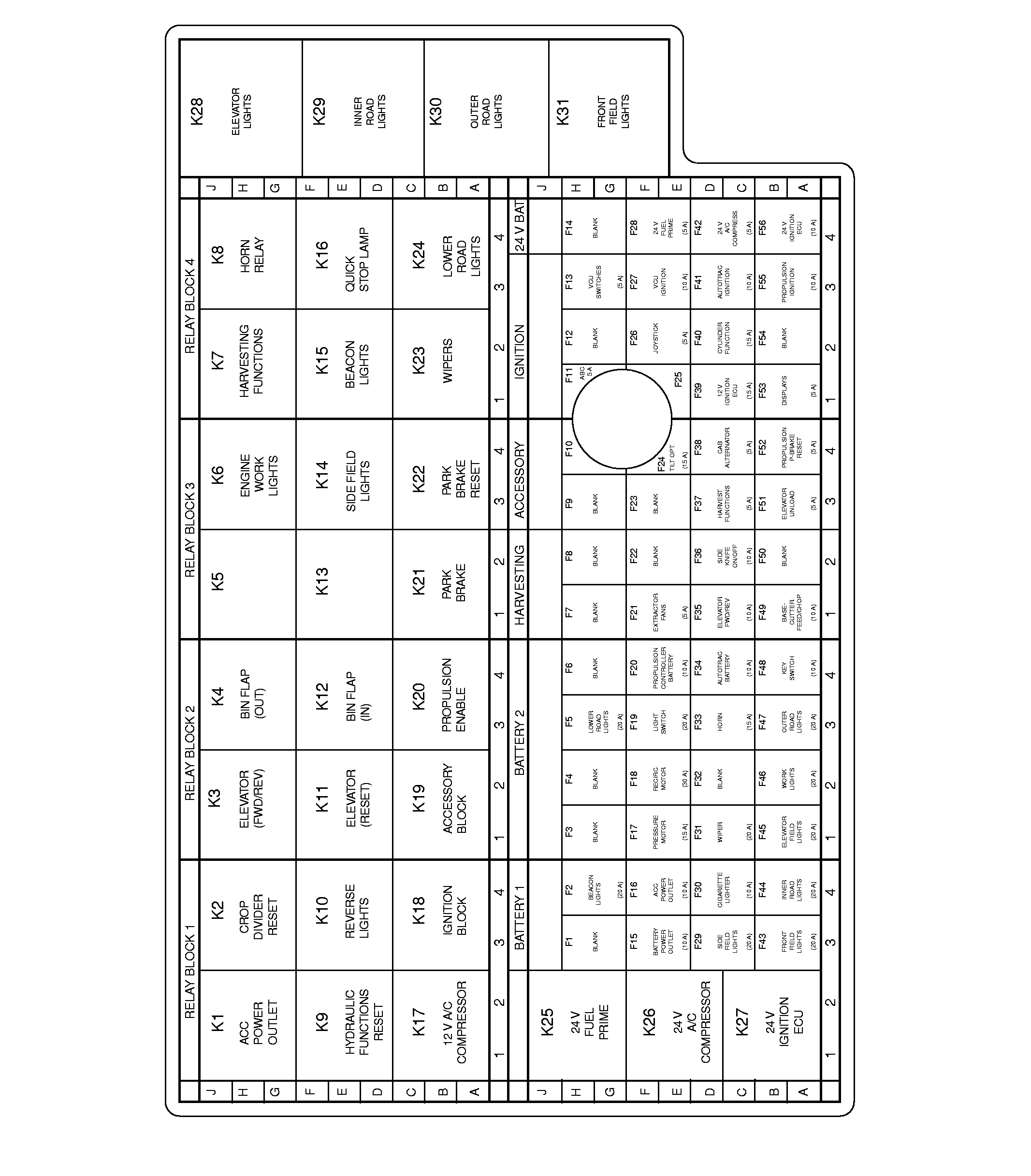

Fuse and Relay Boards

CQ284936-UN-17JAN12

K1 - Acc Power Outlet Relay

K2 - Crop Divider Reset Relay

K3 - Elevator (FWD/REV) Relay

K4 - Bin Flap (out) Relay

K6 - Engine Work Lights Relay

K7 - Harvesting Functions Relay

K8 - Horn Relay Relay

K9 - Hydraulic Functions Reset Relay

K10 - Reverse Lights Relay

K11 - Elevator Reset Relay

K12 - Bin Flap (in) Relay

K14 - Side Field Lights Relay

K15 - Beacon Lights Relay

K16 - Quick Stop Lamp Relay

K17 - 12 V A/C Compressor Relay

K18 - Ignition Block Relay

K19 - Acessory Block Relay

K20 - Propulsion Enable Relay

K21 - Park Brake Relay

K22 - Park Brake Reset Relay

K23 - Wipers Relay

K24 - Lower Road Lights Relay

K25 - 24 V Fuel Prime Relay

K26 - 24 V A/C Compressor

K27 - 24 V Ignition ECU

F1 - Blank

F2 - Beacon Lights Fuse

F3 - Blank

F4 - Blank

F5 - Lower Road Lights Fuse

F6 - Blank

F7 - Blank

F8 - Blank

F9 - Blank

F10 - Blank

F11 - Automatic Basecutter Fuse

F12 - Blank

F13 - VCU Switches Fuse

F14 - Blank

F15 - Battery Power Outlet Fuse

F16 - ACC Power Outlet Fuse

F17 - Pressure Motor Fuse

F18 - Recirculate Motor Fuse

F19 - Light Switch Fuse

F20 - Propulsion Controller Battery Fuse

F21 - Extractor Fans Fuse

F22 - Blank

F23 - Blank

F24 - Tilt Option Fuse

F25 - Blank

F26 - Joystick Fuse

F27 - VCU Ignition Fuse

F28 - 24 V Fuel Prime Fuse

F29 - Side Field Lights Fuse

F30 - Cigarette Lighter Fuse

F31 - Wiper Fuse

F32 - Blank

F33 - Horn Fuse

F34 - AutoTrac Battery Fuse

F35 - Elevator FWD/REV Fuse

F36 - Side Knife ON/OFF Fuse

F37 - Harvesting Functions Fuse

F38 - Cab Alternator Fuse

F39 - 12 V Ignition ECU Fuse

F40 - Cylinder Function Fuse

F41 - Autotrac Ignition Fuse

F42 - 24 V A/C Compressor Fuse

F43 - Front Field Lights Fuse

F44 - Inner Road Lights Fuse

F45 - Elevator Field Lights Fuse

F46 - Work Lights Fuse

F47 - Outer Road Lights Fuse

F48 - Key Switch Fuse

F49 - Basecutter Feed/Chop Fuse

F50 - Blank

F51 - Elevator Unload Fuse

F52 - Propulsion P-Brake Reset Fuse

F53 - Displays Fuse

F54 - Blank

F55 - Propulsion Ignition Fuse

F56 - 24 V Ignition ECU Fuse
