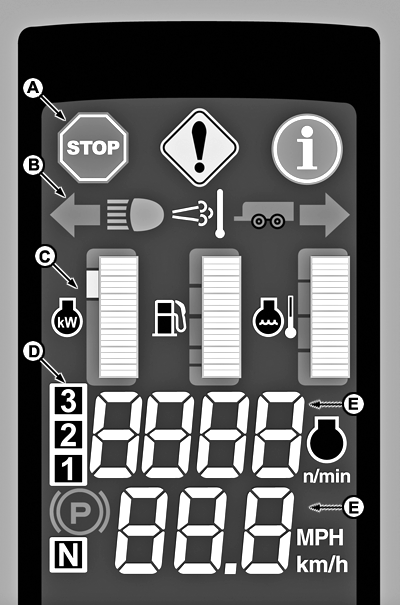

Common Harvester Display (Upper Portion)

CQ284937-UN-02FEB12

Line A: Warning and information panel section.

Line B: The icons in this section are not used.

Line C: Engine power, fuel level and engine temperature are displayed as bar graphs.

Column D: Transmission gear section.

Lines E: Engine speed and speedometer section.
