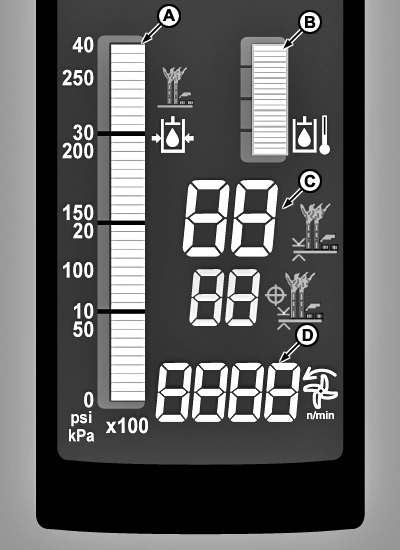

Sugar Cane Harvester Specific Display (Lower Portion)

CQ284938-UN-02FEB12

The bottom portion of the display is intended to be specific to the Sugar Cane Harvester application. Icons are specific to Sugar Cane Harvester functions.

Section A: Basecutter pressure displayed as a bar graph in 0 to 250 psi or 0 to 40 kPa.

Section B: Hydraulic oil temperature displayed as a bar graph.

Section C: Basecutter actual height and basecutter target height shown as digital numbers.

Section D: Primary extractor fan speed shown as digital numbers.
