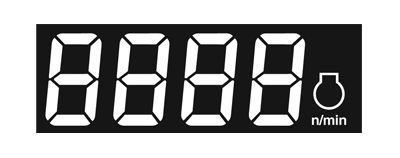

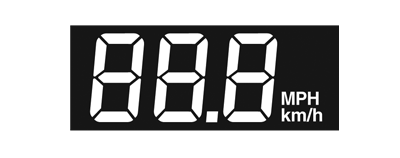

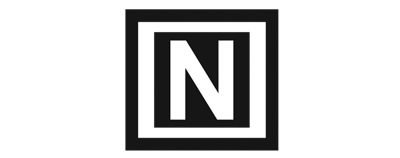

PDU – Primary Display Unit Icon and Symbols

Stop Alarm: (Most Severe)

CQ284939-UN-23JAN12

STOP lamp shall blink at a duty cycle of 500 ms ON and 500 ms OFF. A stop alarm has a continuously sounding audible alarm. The stop lamp shall remain flashing until the condition goes away.

Service Alert: (Moderately Severe)

CQ284940-UN-23JAN12

Amber Warning Lamp, the SERVICE ALERT lamp shall blink at a duty cycle of 500 ms ON and 500 ms OFF. A Service Alert Alarm shall beep five times with 600 ms ON and 200 ms OFF. The Service Alert lamp shall remain flashing until the condition goes away.

Information Alert: (Least Severe)

CQ284941-UN-23JAN12

Protect Lamp status, the INFORMATION ALERT lamp shall be on continuously. An Information Alert alarm will sound once for two seconds. The Information Alert lamp will remain on solid until the condition goes away or is acknowledged.

Park Brake

CQ284945-UN-23JAN12

Park Brake Icon will illuminate when the Park Brake is active. Park Brake Icon will be off when the park brake switch is off or park brake is inactive.

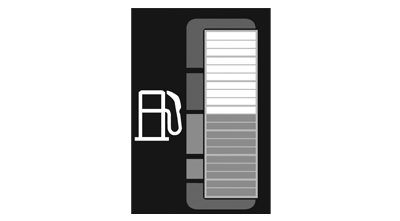

Fuel Level

CQ284947-UN-23JAN12

The Fuel Level bars and bars to the left will be lit to display the current fuel level. The fuel system Icon will start flashing when one or two bars remain lit.

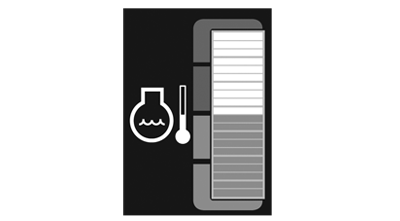

Engine Coolant Temperature

CQ284948-UN-23JAN12

The Engine Coolant Temperature bars and bars to the left will be lit to display the current temperature level. Green bars <99°C and Red bars >100°C.

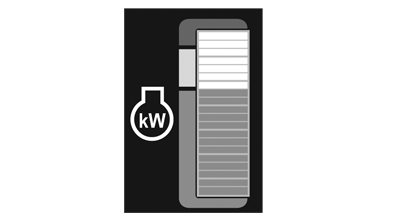

Engine Power Meter

CQ284949-UN-23JAN12

The Engine Power percent load bars and bars to the left will be lit to display the current load. Green bars 35% to 100%, Yellow bars 100% to 110%, Red bars 110% to 114%.
