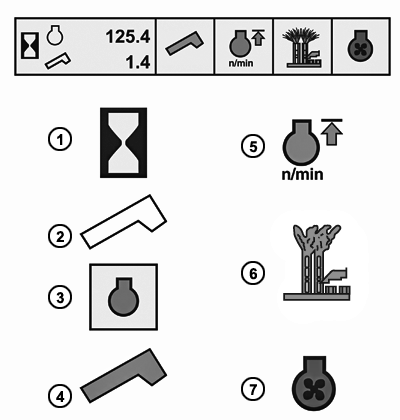

Harvesting Home Screen Banner Icons

CQ284963-UN-25JAN12

1 - Hour Meter

2 - Elevator

3 - Engine

4 - Elevator On/Off
Green = On
Gray = Off

5 - Field Cruise On/Off
Green = On
Gray = Off

6 - Basecutter Forward/Reverse
Green = Forward
Yellow = Reverse
Gray = Off

7 - Engine Cooling Fan Forward/Reverse
Green = Forward
Yellow = Reverse
Gray = Off
