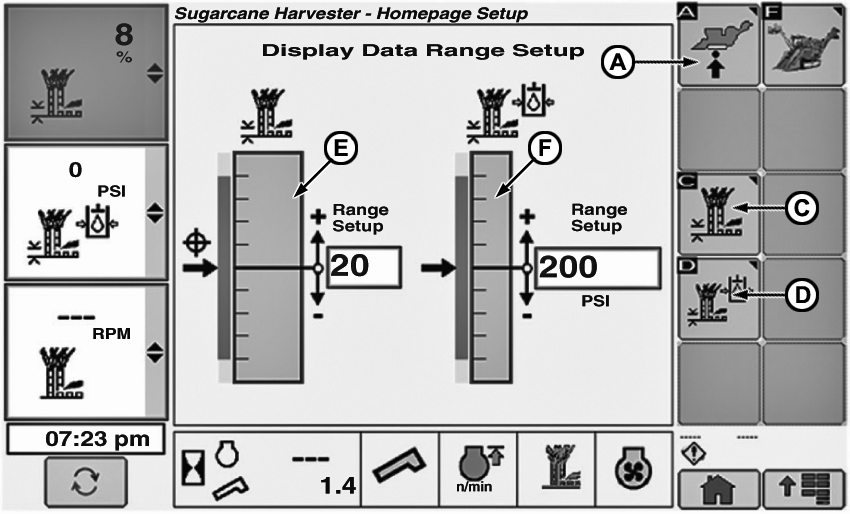

Home Page Setup

CQ293107-19-13FEB12

A: Maximum Speed Setup (Track Only)

C: Activates the basecutter height adjust setup window

D: Activates the basecutter pressure adjust window.

E: Basecutter height range: Allows the user to determine the min/max value of the basecutter height bar graph on the home page range (5-50) in increments of 5 with a default of 20.

F: Basecutter pressure range: Allows the user to determine the basecutter pressure bar graph range (100-2000 psi) in increments of (100 psi) with a default of (200 psi). The pressure range show on the home page will be target pressure plus and minus this value.
