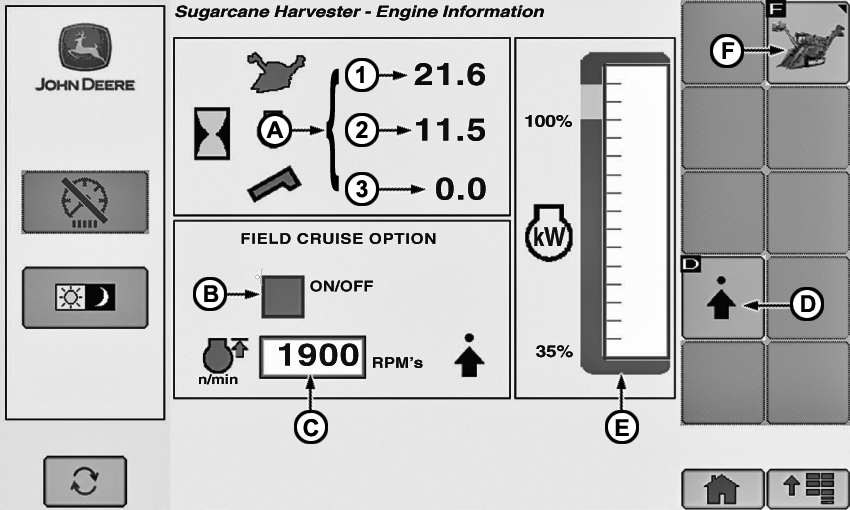

Engine Setup Screen

CQ293109-19-13FEB12

A: Total hours: vehicle (1), engine (2) and elevator (3).

B: Field cruise enable: this features gives the user the ability to modify the high idle set point.

C: Field cruise set point: this feaures give the use the ability to set the high idle set point. From 1900 RPM to 2210 RPM in increments of 10 RPM.

E: Engine power meter displaying calculated engine power (35 — 115%).

Soft keys

D: Activates the field cruise set point field.

F: Back to sugarcane home page.
