PDU Lower Section Icons

Basecutter Cutting Pressure

CQ284957-UN-02FEB12

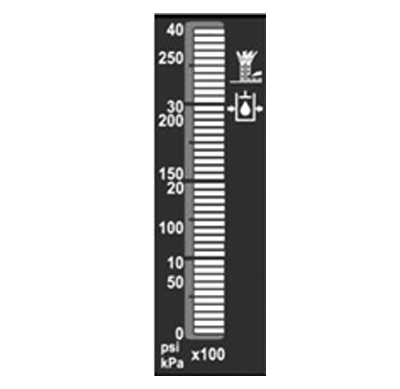

The Basecutter Forward cutting pressure will display the current Basecutter pressure bar and all bars below will be lit.

Basecutter Height Actual

CQ284958-UN-25JAN12

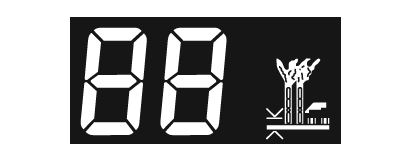

Actual Basecutter Height will be displayed as a numeric valve.

Basecutter Height Target

CQ284959-UN-25JAN12

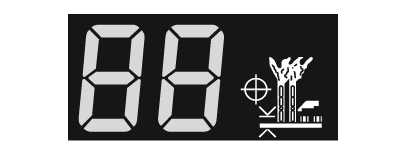

Target Basecutter Height will be displayed. This value is set by the operator.

Primary Extractor Fan RPM

CQ284960-UN-23JAN12

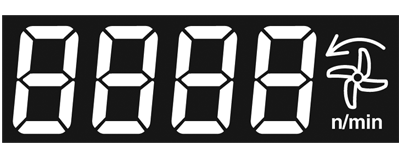

The Primary Extractor Fan RPM will be displayed as a numeric value.

Hydraulic Oil Temperature

CQ284961-UN-23JAN12

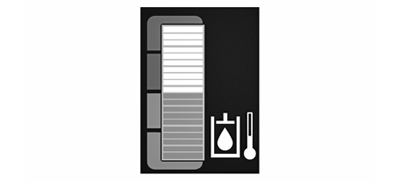

The Hydraulic Oil Temperature bars and bars to the left will be lit to display the current temperature.
