Right-Hand Column Control Panel

CQ284973-UN-06FEB12

CQ286187-UN-25NOV10

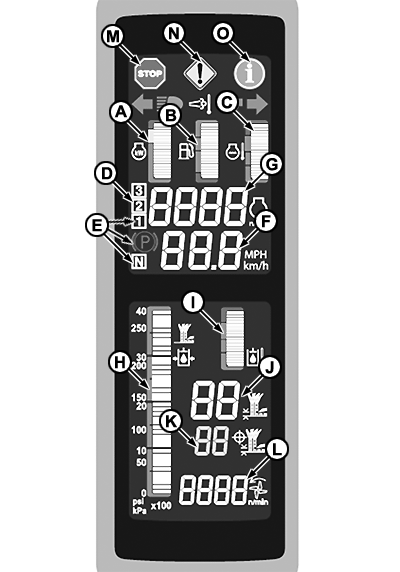

A - Engine Load

B - Fuel Level

C - Engine Temperature

D - Second Gear (Optional on track only)

E - Gear Selection and Park Brake Indicator Light

F - Ground Speed

G - Engine RPM

H - Base Cutter Pressure

I - Hydraulic Oil Temperature

J - Actual Base Cutter Height

K - Target Base Cutter Height

L - Primary Fan RPM

M - Engine Stop Indicator Light

N - Engine Warning Indicator Light

O - Information Indicator Light

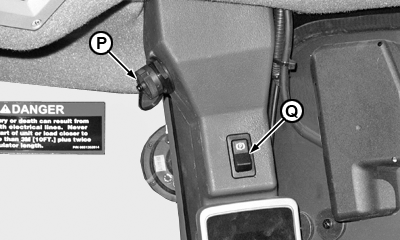

P - Greenstar Ready outlet

Q - Parking brake switch
