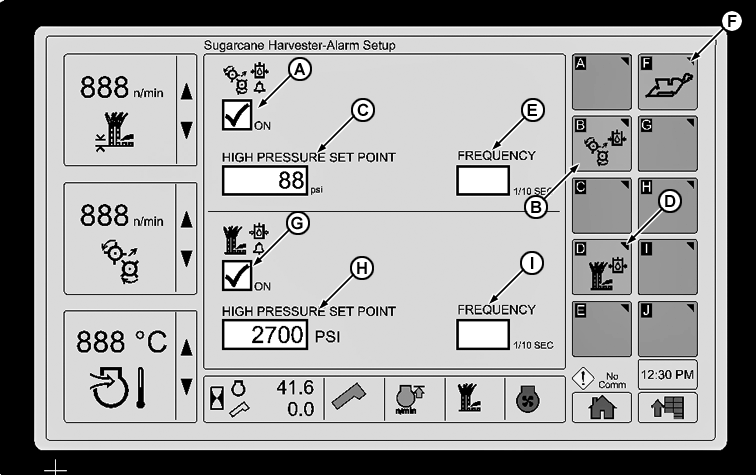

Sugarcane Alarm Setup Screen

CQ293106-19-14FEB12

A: Basecutter pressure alarm enable default is the alarm shall be off.

C: Basecutter pressure set point range (500-6000 psi) default (1200 psi).

E: Basecutter pressure frequency: Defines how long an over pressure condition must be present to active an alarm. Range (1-50) tenths of a second default (1 second).

G: Chopper pressure alarm enable default is the alarm shall be off.

H: Chopper pressure set point range (500-6000 psi) default (1000 psi).

I: Chopper pressure frequency: Defines how long an over pressure condition must be present to active an alarm. Range (1-50) tenths of a second default 1 second.

Soft keys

B: Activates the basecutter high pressure set point box.

D: Activates the chopper high pressure range set point box.

F: Back to sugarcane home page.
