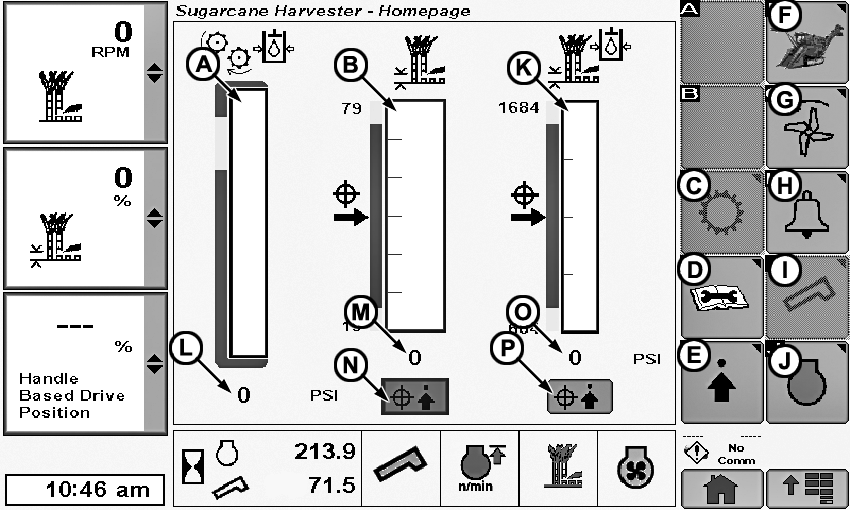

A: Chopper pressure bar graph (0 - 6000 psi; 0 - 41000 kPa).

B: Basecutter height bar graph (0 - 99) and the scale is user adjustable via setup screen E.

K: Basecutter pressure bar graph (0 - 6000 psi; 0 - 41000 kPa) and the scale is use adjustable via setup screen E.

L: Chopper pressure value.

M: Basecutter height value.

N: Basecutter height set point - When pressed and held by the system takes the value displayed above the button as the basecutter height set point and displays the value on the PDU. The set point also adjusts the min/max values of the basecutter height bar graph. if the use presses and holds the button the graph range (0 - 99) and the basecutter height target becomes 0.

O: Basecutter pressure value.

P: Basecutter pressure set point - When pressed and held by the user the system take the value displayed above the button as the basecutter pressure set point. the set point adjusts the min/max values of the basecutter pressure bar graph. If the user presses and holds the button the graph range (0 - 6000 psi; 0 - 41000 kPa) and the basecutter height target becomes 0.

Q: Menu keys to access other Display pages. A-J.

Soft Keys

C: Track Bias Setup.

D: Diagnostic Readings.

E: Home page setup screen.

F: Return to sugarcane home page.

G: Primary Extractor Setup.

H: Alarm Setup.

I: Elevator Setup.

J: Engine Information.
